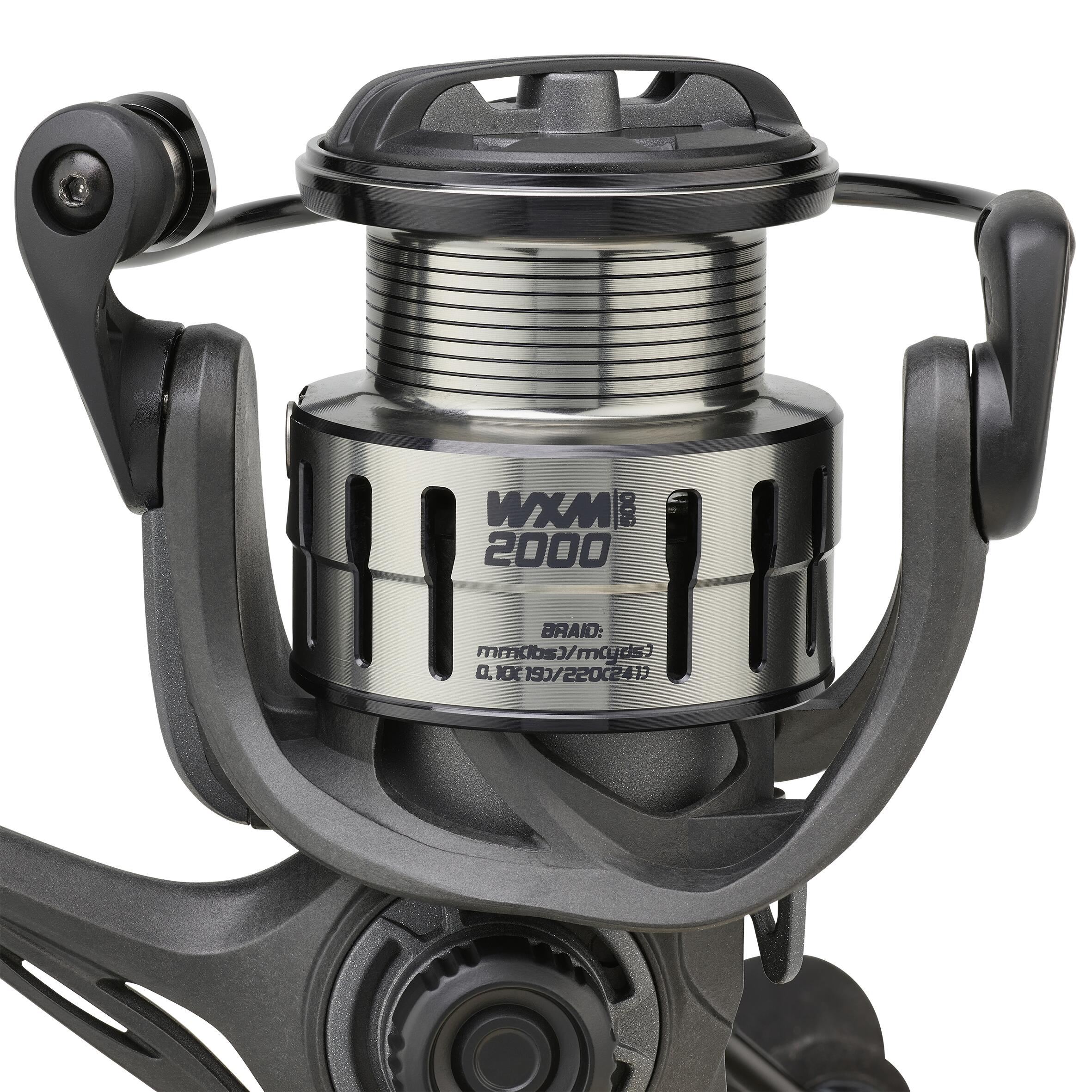

Lure Fishing Reel 2000 - WMX 500

Lightweight

Weight: 235 g Carbon rotor frame

Braking power

Max.: 17½ lbs Usable: 3.8 kg

Bearing smoothness

Number of bearings: 6+1

Speed

Line retrieve per crank: 82 cm ratio: 6,2:1

Robustness

Aluminum spool frame made from carbon fibre One-piece screwed crank handle

Repair

Find all spare parts in the technical information section

Technical features

Line retrieve per crank: 82 cm - Weight: 235 g - Drag weight: 17½ lbs - Usable drag: 8½ lbs - Ratio: 6.2:1 - Bearings: 6+1 - Spool: Aluminum - Casing: Carbon-loaded PA - Rotor: Carbon-loaded PA

Instructions

We advise that you use this reel with a braided line with a diameter of 0.10 mm, and a rod with a casting weight of L or M/L

Spool Capacity:

Braided line capacity: 0.10 mm: 220 m Monofilament capacity: 0.18 mm 230m 0.20 mm: 196 yds

Drag Casting Weight

Max. power: The most commonly communicated measurement – it indicates the spool’s maximum drag power. Usable power: The closest measurement to use, as it takes into account the malformation of the reel rig (rotor, pick-up support, etc.) and indicates the drag casting weight: available for fighting against the fish. Explicative video

Adjusting the line coiling

This reel comes with adjustment rings to adjust the conicity of your coiling: If you have a pyramid-shaped coiling (lower section fuller than the upper section): Remove the spool to get at the axis and remove one or two plastic rings If your coiling is in the shape of an inverted pyramid (upper section fuller than the lower section): Remove the spool to get at the axis and add one or two of the plastic rings provided

After-Sales Service

Parts available in post-sale services: - Spool: reference 8755522 - Shallow pool: reference 8772256 - Drag button: reference 8755533 - Crank: reference 8755546 - Crank button: reference 8755539 You can find them directly via the Decathlon website using the reference codes

Design

Our reels have been developed by our teams of engineers and designers in France at Cestas. They undergo multiple rounds of testing and improvement to ensure they’re both lightweight and durable. Our reels are also tested and approved by several anglers: team members, customers, and even fishing guides.
