clearance

Cushioning

Fast acting

Adjustable

Anatomic design

Stability

Capacity

Compatibility

Do not wash.

Do not dry clean.

Do not iron.

Do not tumble dry.

Bleaching excluded.

ref. number 8576631: 2 front strap screws and 2 rear strap screws
ref. number 8576570: 4 strap attachments
ref. number 8576632: 1 pair of toe straps size M
ref. number 8576633: 1 pair of toe straps size L
ref. number 8576569: 4 ankle strap attachments
ref. number 8576639: 1 pair of ankle straps size M
ref. number 8576638: 1 pair of ankle straps size L
ref. number 8576658: 1 disc and 4 screws (16 mm)
ref. number 8576630: 2 highback screws

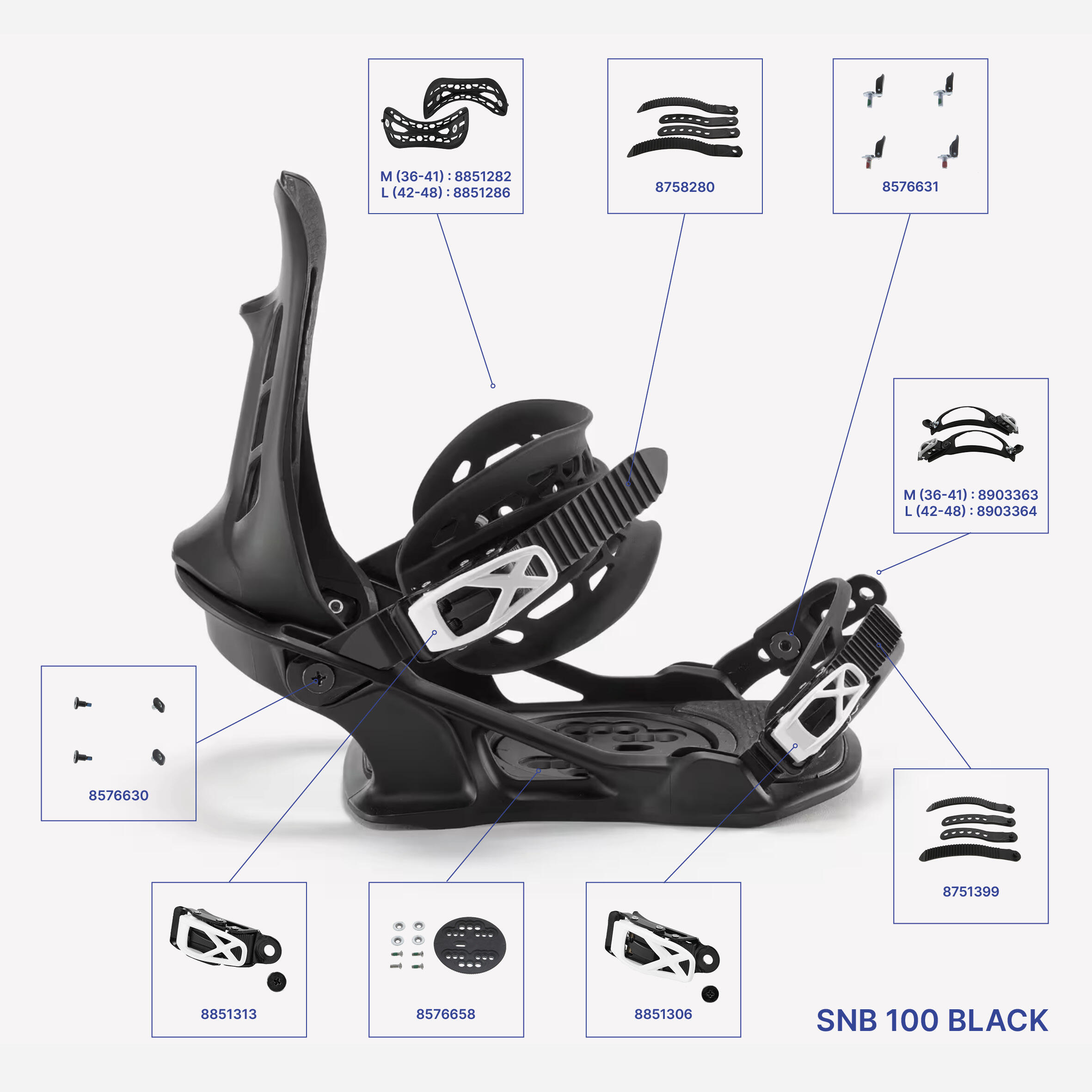

After-sales parts list

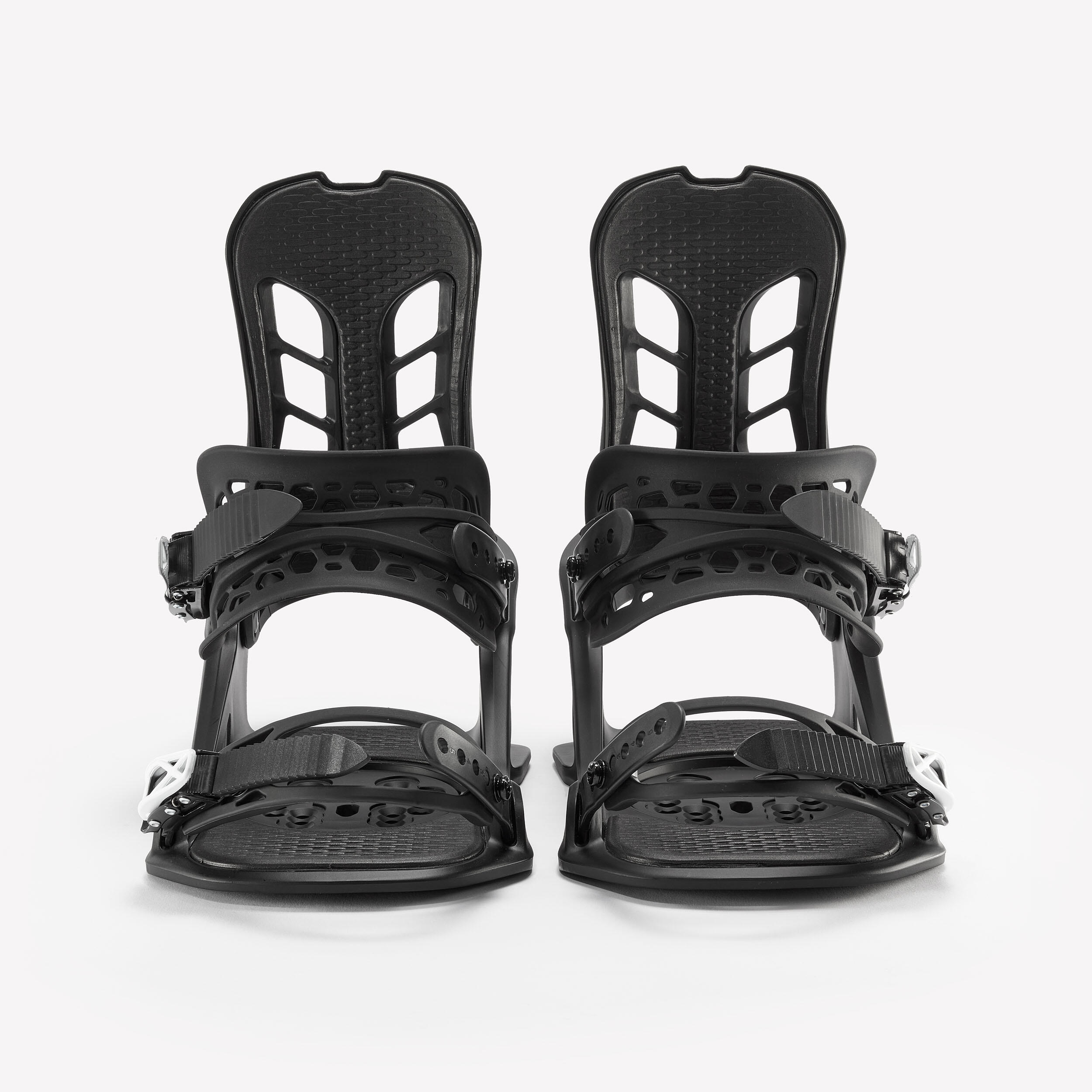

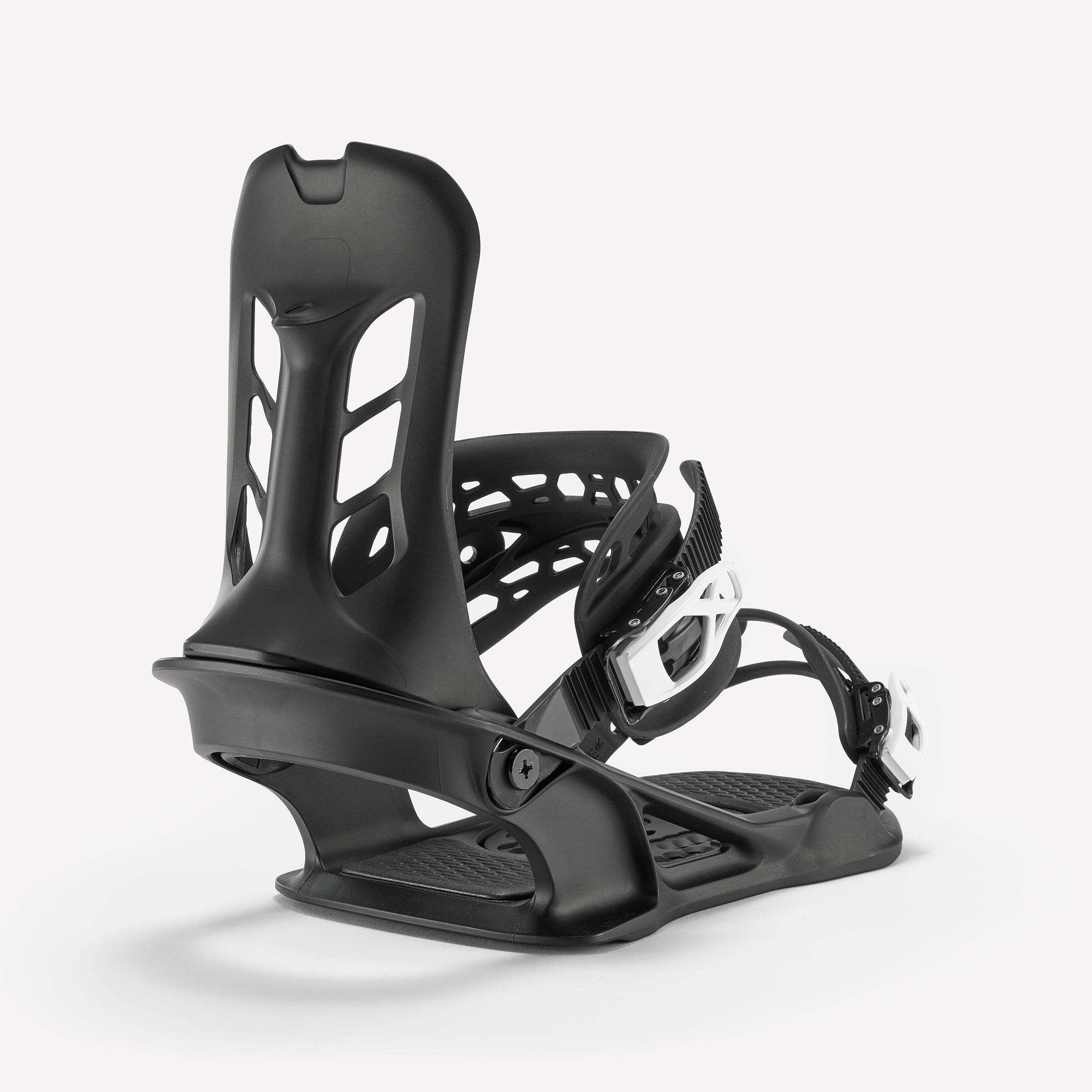

The SNB 100 Snowboard Binding is a traditional binding, designed for discovering snowboarding and supporting your progress on groomed slopes and off-piste.
It offers all the basic functions of a good snowboard binding (comfort, support, and rigidity to steer the board), but without additional options, to make it as affordable as possible. There is no adjustment of the angle of the highback, and you will need to use a screwdriver on the strap screws.

Program/terrain

The SNB 100 Binding allows you to easily centre your feet on the board:
- 3 positions for screws on the disc: 18 mm (0.7”) of adjustment between minimum and maximum

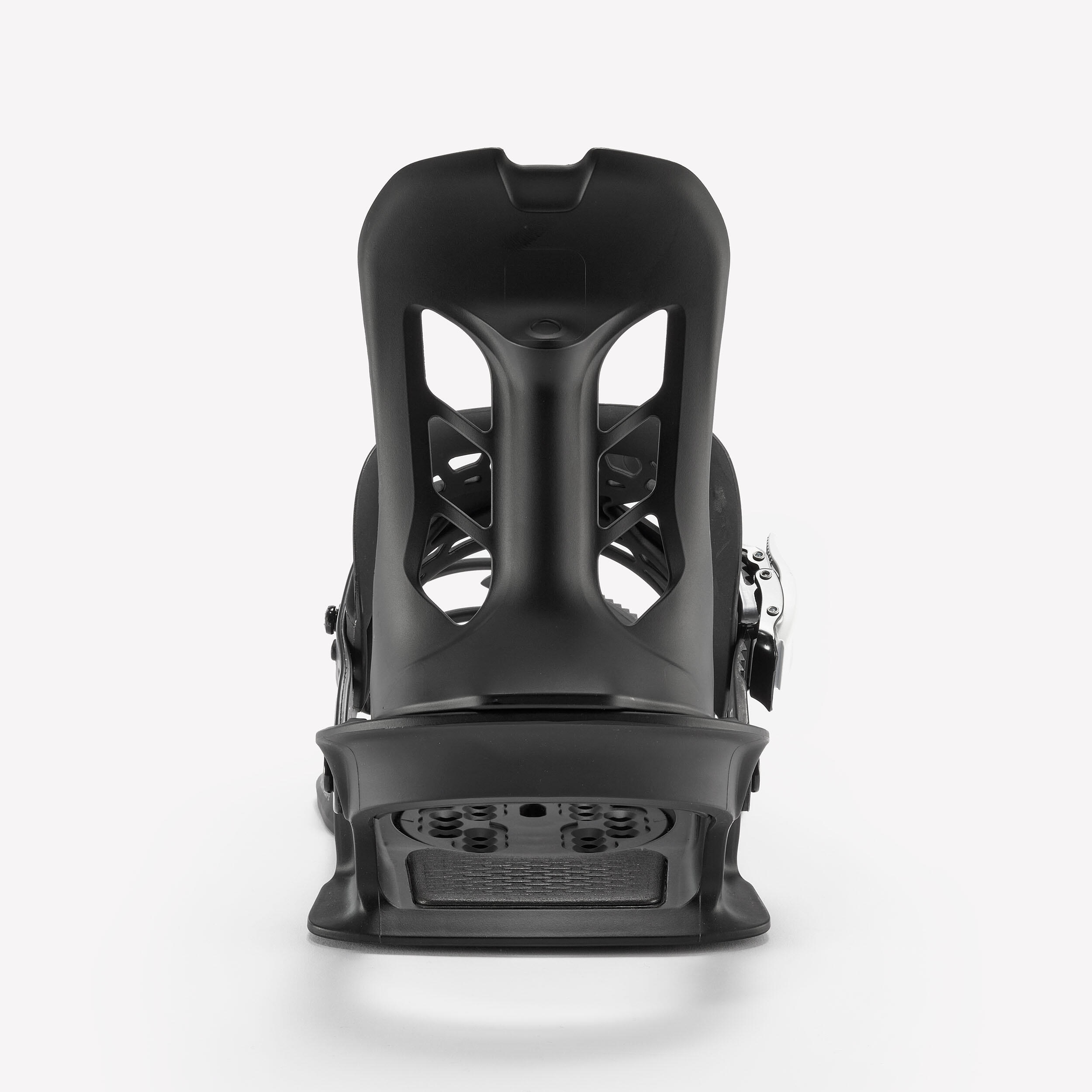

 - Adjustment of the highback from front to rear: +12 mm (0.5”) of additional adjustment
The aim is for the boot to hang over the board as much at the toe as the heel.

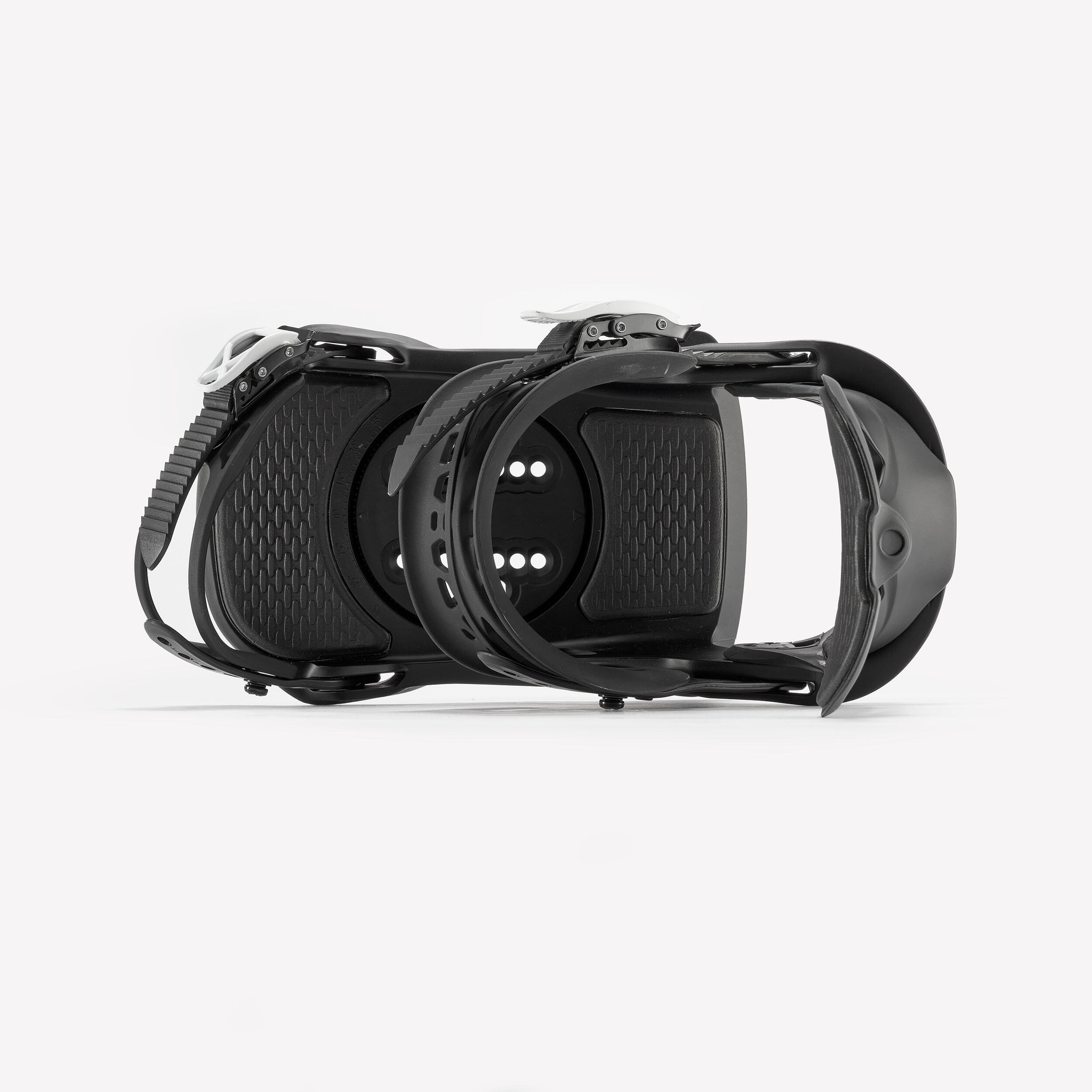

The straps can then be adjusted to the boot with the pre-drilled positions on the straps.

Adjustment options

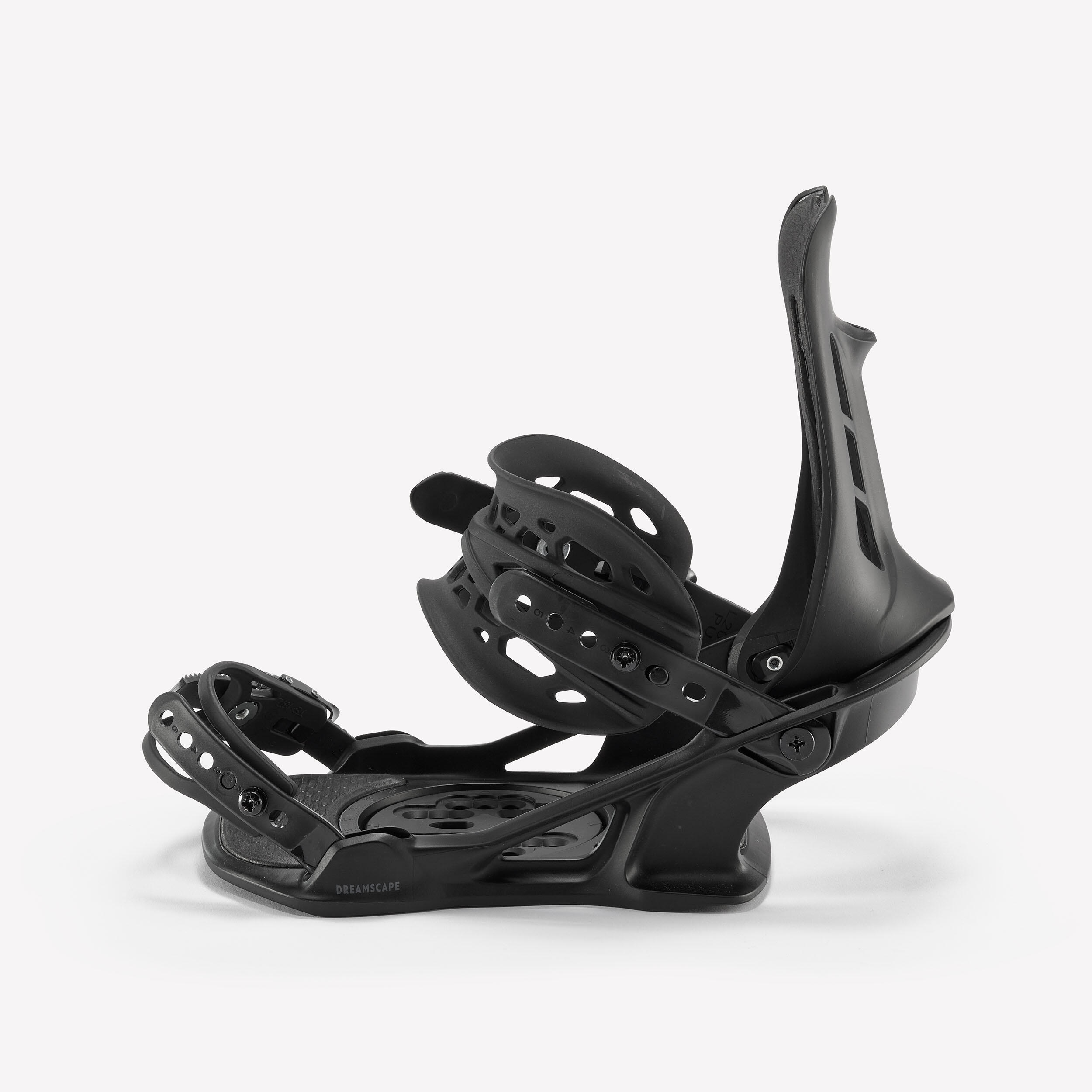

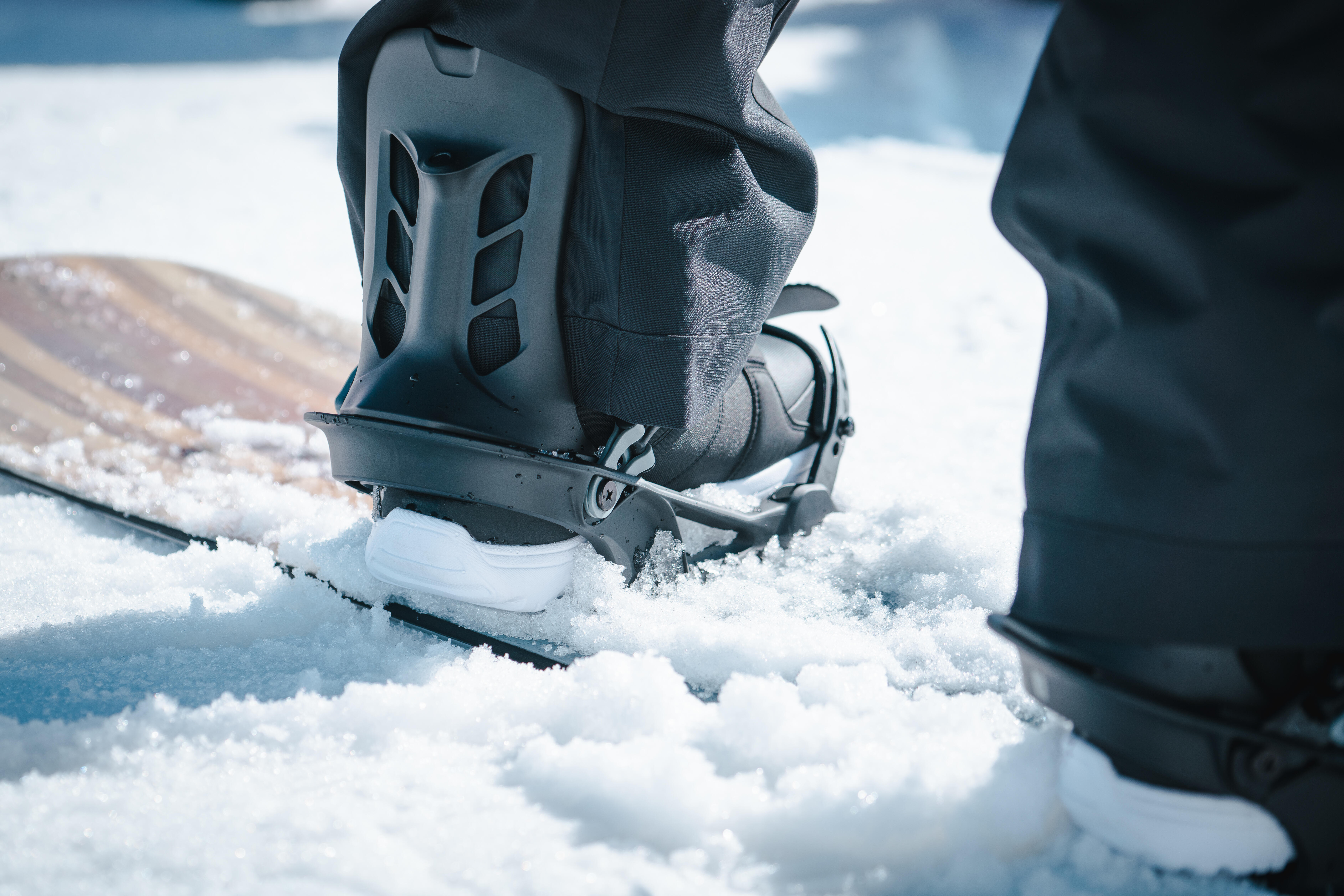

Turn strap system: The strap is mounted onto a hinge that turns it inward when you lift your foot.
When putting the boot on, there is space to insert the boot into the binding without any discomfort. This also prevents the strap and the hooks from getting crushed with the boot.

Opening mechanism

The stance is the distance between the bindings in cm. It can be adapted according to your body shape, but all snowboards have a recommended stance for bindings (shown by a mark between the binding inserts). If you want to position your feet further apart or closer together on the board, test it to see if the stance is suitable for you.

Stance, binding spacing

For piste/off-piste boards:
To keep feet closer together, move the binding forward only.
To move feet farther apart, move the binding backward. The idea is to get a little further back to improve piste performance on bends and float on powder snow.
For freestyle boards (symmetrical):
best to keep both bindings centred on the board.

How do I change my stance on the board?

For a freeride run, +18° at the front and 0° at the rear is recommended. For a versatile freestyle run, try +18° and -6°. The back foot opening lets you change when riding switch.
For pure freestyle runs, choose completely symmetrical angles such as +15° and -15°, for example.
Angle choice on bindings is a very personal thing. Don’t be afraid to check out what others are doing and try out different options. You might be pleasantly surprised!

How should I angle my snowboard bindings?

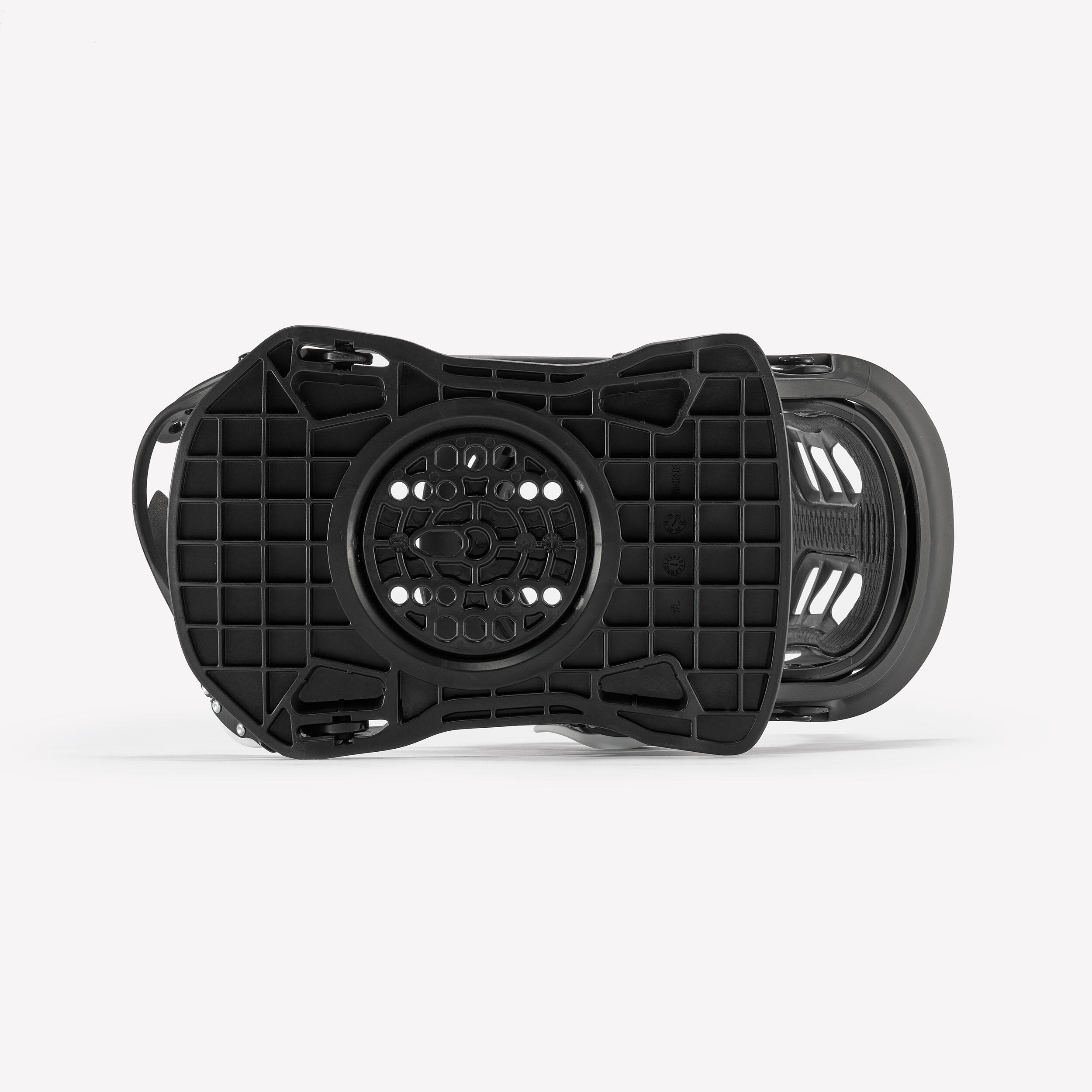

Disc bindings with 4 screws can slide along a single axis and generally have 5 possible settings. This setting is used to centre the boot on the snowboard and prevent the foot from protruding over the edge of the board to avoid falling. Make sure that your boot goes over the 2 sides of the board equally. You can also rotate the disc by 90°. In this case, the bindings cannot be centred laterally.

Remember to centre your boot on your board!

M = 22.5 cm to 26 cm
G = 26.5 cm to 30 cm

We strongly recommend trying on the bindings with your snowboard boots, as a particular size of boot can vary in volume depending on the brand.

What size should I choose for my snowboard bindings?

The Burton snowboard brand has its own system for mounting bindings, the Channel. The binding is screwed on 2 movable inserts.
Our disc makes it possible to mount this bracket on the channel.
However, the screws that come with our discs are not compatible in diameter. The Burton insert is also different from the rest of the market. You will need to buy Burton screws.
