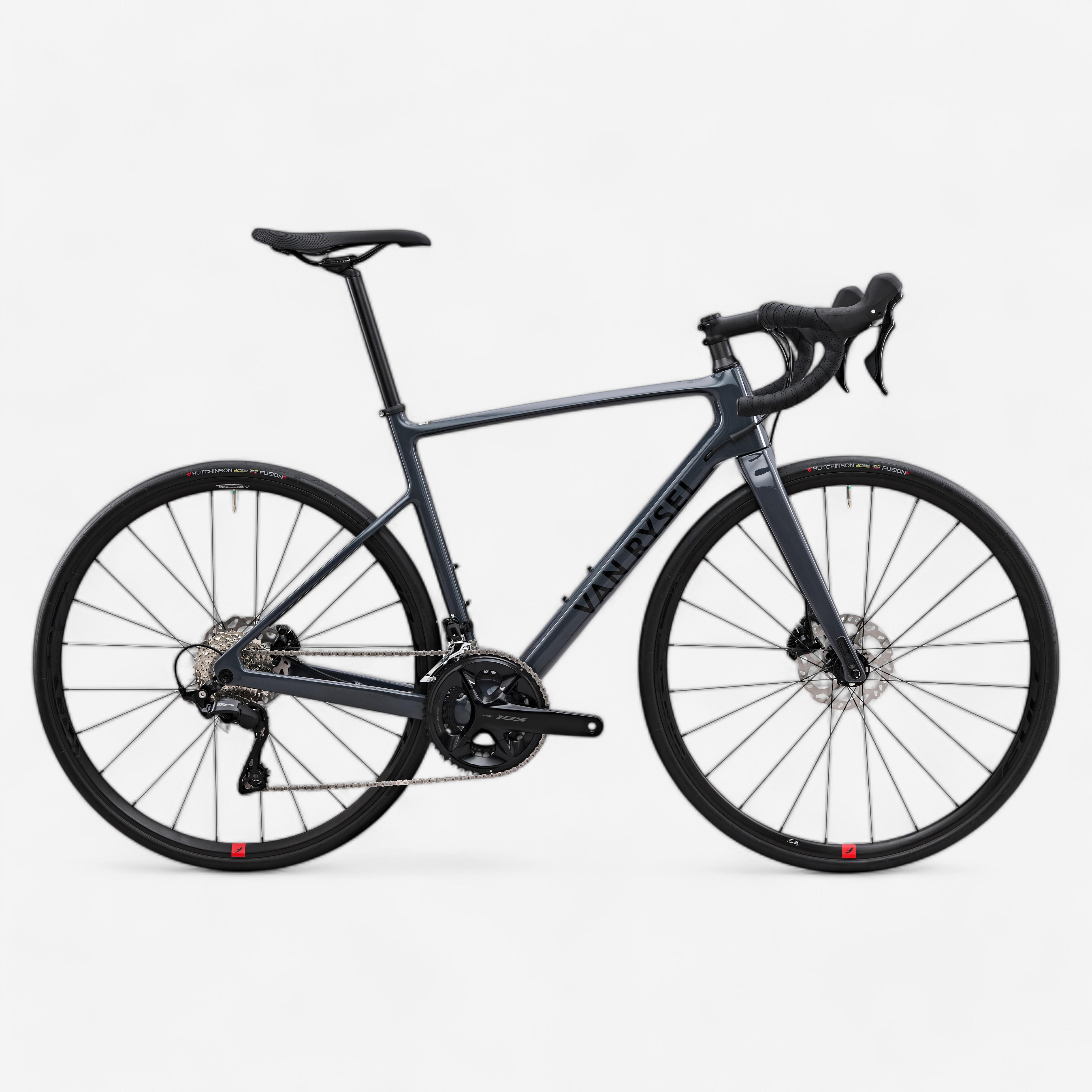

Name: Carbon Road Bike, Neo Racer Shimano 105 12S Grey
Brand: VAN RYSEL
SKU: 4672403
Price: 2800 CAD
Availability: InStock
Rating: 4.4 (29 reviews)

Efficiency

Lightweight

Braking power

Weight

Versatility

Precision

Do not wash.

Do not dry clean.

Do not iron.

Do not tumble dry.

Bleaching excluded.

The Neo Racer Carbon Frame bike is our most all-round bike but still retains a strong focus on performance. It’s part of the Race range, with a sporty style that’s sure to appeal to performance-oriented cyclists.
Whether you’re a beginner or an old hand, you’ll love what this bike has to offer.
Every bike in the NCR range is equipped with hydraulic disc brakes to guarantee progressive braking.

The NCR CF range

This bike is the perfect partner for getting into competitions from a young age (size XXS) or for taking part in your first triathlons. It has a big clearance that lets you mount tires measuring up to 35 mm (1 1/3”) so you can explore the trails near your home.

An all-round bike

100% carbon frame and fork. Carbon makes this bike lighter, more rigid and more energetic.
We’ve also chosen to have a carbon fork for more direct, precise control.

The NCR CF’s painted frame weighs 1200 g (42 oz.) in size M and the fork weighs 413 g (14 oz.).

Frame clearance: there’s enough clearance to mount up to 35 mm (1.4”) tires. Please note: with 38 mm (1.5”) tires, there’s a strong risk of damaging the paintwork.

A closer look at the frame

The NCR CF’s steering elements are made entirely from aluminum, with a Van Rysel oversize stem and handlebar.

The stem size depends on the frame size:
XXS 60 mm (2.3”)
XS 70 mm (2.8”)
S 80 mm (3”)
 M 90 mm (3.5”)
L 100 mm (4”)
XL 110 mm (4”)

Axis-to-axis handlebar width:
XXS, XS S 400 mm (15”)
M, L, XL 420 mm (16”)

Cockpit

This bike comes with the all-new Shimano 2x12 speed groupset. Not only does it give you plenty of speed, this version of the legendary Shimano groupset improves the gear-shifting experience even more.
The gaps between gears are smaller with 12 speeds on the cassette.

BB: KSMBB7141B

Shimano 105 12-speed drivetrain

This bike comes with a Shimano 105 (R7100) 50/34 double chainring.
This classic combination will suit most cyclists.

The R7100 11-34 cassette also provides the perfect gear ratios. Increments of 1 from 11 to 15 T, then a smooth progression up to 34 T.
With a 1:1 ratio of 34/34, no hill can stand in your way.

11-12-13-14-15-17-19-21-24-27-30-34

SHIMANO 12S 7100 chain

Crank length according to size
XXS XS 165 mm (6”)
S 170 mm (6.7”)
M 172.5 mm (6.8”)
L, XL 175 mm (7”)

Gearing

Please note that it is important to regularly service your drive train, especially if you ride in difficult conditions (wet and/or dirty roads).
Regular maintenance will help your drive train to last for longer.

You should regularly check your chain with our chain wear indicator,

which is available on our website.

Drive train maintenance

When buying a bike, it’s important to take into account servicing costs, especially the drive train.
We provide estimates based on average lifespans below to give you a general idea of what to expect. These will, of course, vary depending on the care you take of your drive train.

The average lifespan of a well-maintained chain is 5,000 km (3,000 mi)
.The average lifespan of a cassette is 10,000-12,000 km (6,000-7,500 mi)

Drive train lifespan

Shimano 105 disc brakes with 160 mm (6”) rotors at the front and back.

Ref: ASMRT54SE

Disc brakes

Racing 700 DB Hyperglide
Front axle: 12x100
Rear axle: 12x142

Fulcrum wheels


Size: 700 x 28 C
The new ElevenStorm® rubber meets the five main performance criteria for a high-end tire: grip, rolling performance, durability, puncture resistance, and comfort.
This version offers a perfect balance for cyclists who want to go faster and farther. When combined with a Kevlar® strip under the tread, it lets you ride with peace of mind and is rated to last for over 4,000 km (2,500 mi). Tubeless ready.

Hutchinson perf black tire

We recommend switching your tires to tubeless using the tubeless valve that comes with this bike.

Tubeless is more comfortable and more efficient, and the tires can self-repair when you get small punctures.

Of course, you should always carry an inner tube in your repair kit, just in case your tire gets a slightly bigger puncture.

Tubeless or inner tube

Van Rysel aluminum seat post, 27.2 mm (1") diameter

XXS, XS: 250 mm (10”)
S, M: 350 mm (14”)


Van Rysel Sport 900 saddle

Position

Pedals

Please refer to the bike frame geometry table.
If you’re between sizes, a shorter bike is better if you want something more responsive and lively. However, if you want to be comfortable when riding long distances, the bigger size is your best bet.
