This wide, shock-resistant mudguard kit stops mud from getting sprayed onto the rider's lower back, chest, and face.
For best results, position the rear mudguard blade as close as possible (2 to 3 cm [4/5 to 1 1/5"]) to the wheel.

You can't avoid muddy splatters completely when it's damp...
But for getting from A to B, we recommend using a hybrid bike mudguard kit (with longer blades that are closer to the wheels), if compatible with your bike frame, and tire width.


Level of protection

This kit is suitable for 26" to 29" mountain bikes, with a tire width up to 2.8" in 27.5" and 2.6" in 29", equipped with a telescopic fork.

To ensure a good fit at the front, the internal diameter of the steerer tube must be between 18 and 34 mm.If the front blade interferes with the underside of the frame (for example in small sizes), it is possible to move the blade forward.

To ensure a good fit at the rear, the diameter of the seat post must be between 25.4 and 34.9 mm.

Bike compatibility

The front mudguard comes fully assembled and ready to be mounted, with a 23 mm (1") medium expansion socket.
To make this product compatible with as many different telescopic forks as possible, there are 2 additional expansion sockets included in this kit: 1 smaller, 18 mm (7/10") one and 1 bigger, 31 mm (1 1/4") one.The rear fender comes fully assembled and ready to be mounted, no matter the diameter of your seat post.

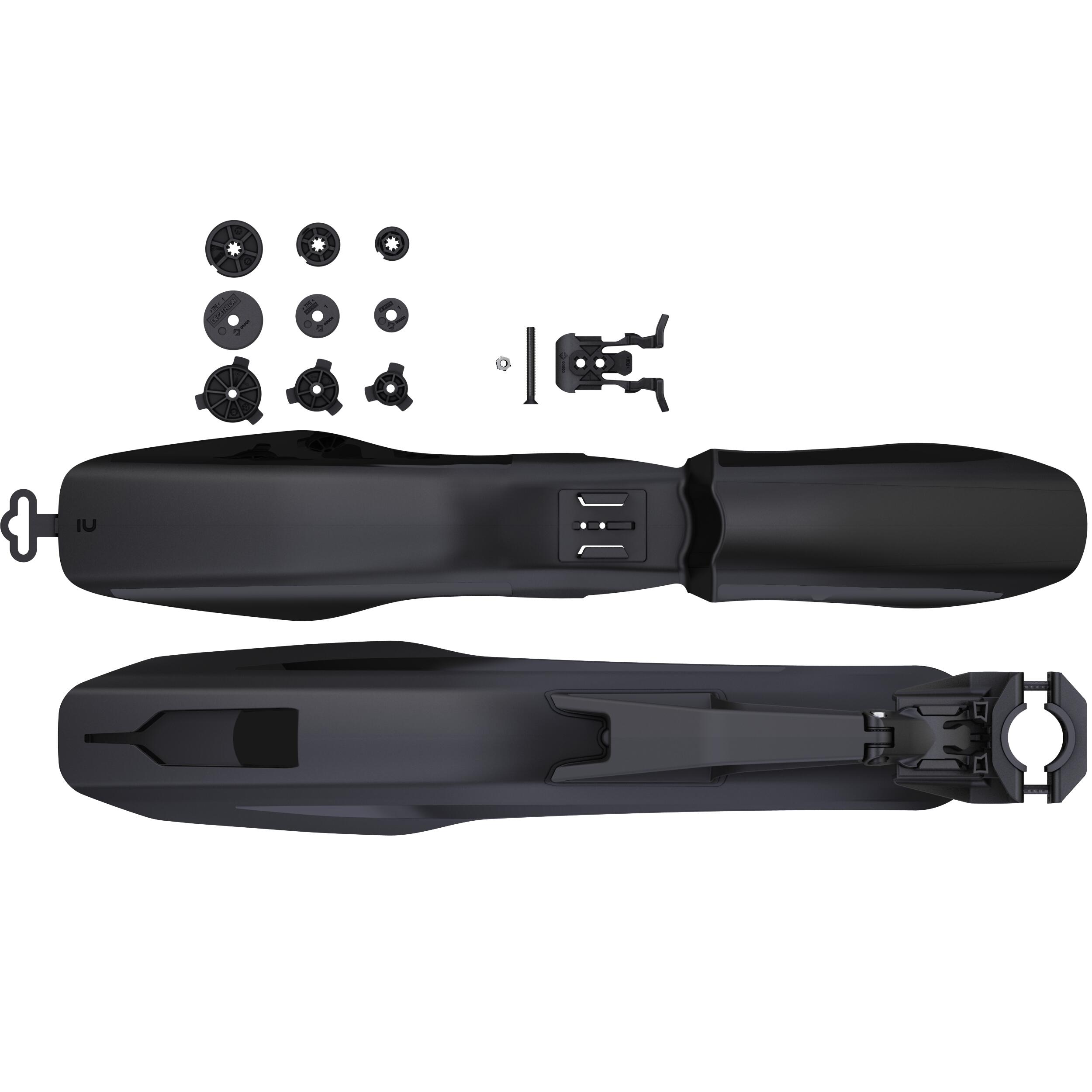

Box contents

With dimensions that fit all the new wheel and tire sizes on the market and a bold design, our fenders give your bike a modern, dynamic look.

Everything has been designed to give you the best experience:
- A reliable screw-on bracket that holds the fenders in the same position each time
- An easy system to clip the blade onto and take it off your bike depending on the weather
- Compatible with accessories (camera, lights)

A modern, efficient design

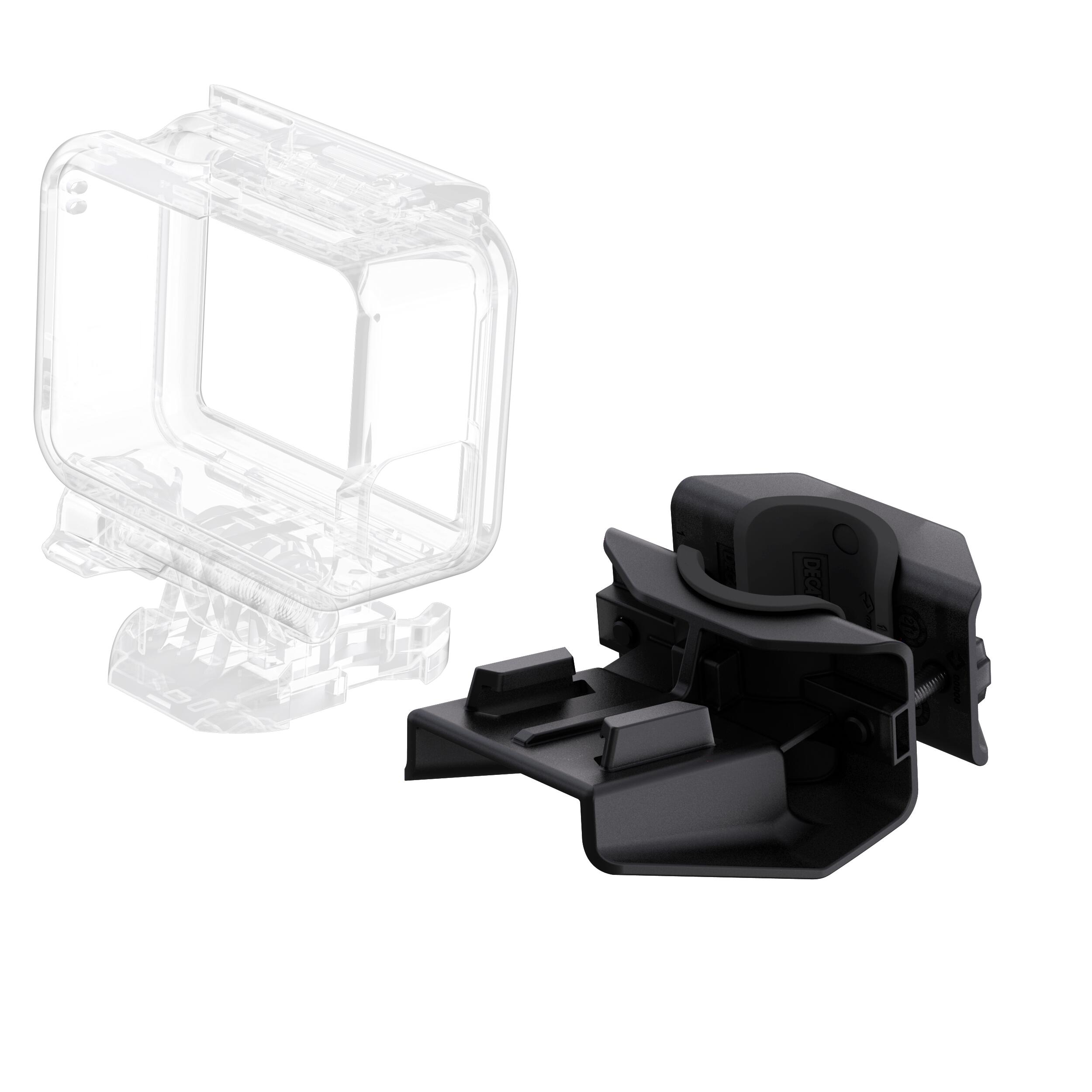

In dry weather, you can unclip the blade from the rear bracket and clip a sports camera on instead. The camera must be compatible with the GoPro bracket system.

To keep you safe when riding early in the morning or late at night, there's a rail at the end of the rear blade that you can clip a rear, red light to: CL 100, CL 500, CL 900, ST 500, or RL 510 LED.

Compatible accessories

Front:
Blade length: 553 mm (22")
Blade width: 73 to 97 mm (3 to 4")
Total weight: 120 g (4 oz.)

Rear:

Blade length: 497 mm (20")
Blade width: 73 to 95 mm (3 to 4")
Total weight: 230 g (8 oz.)
