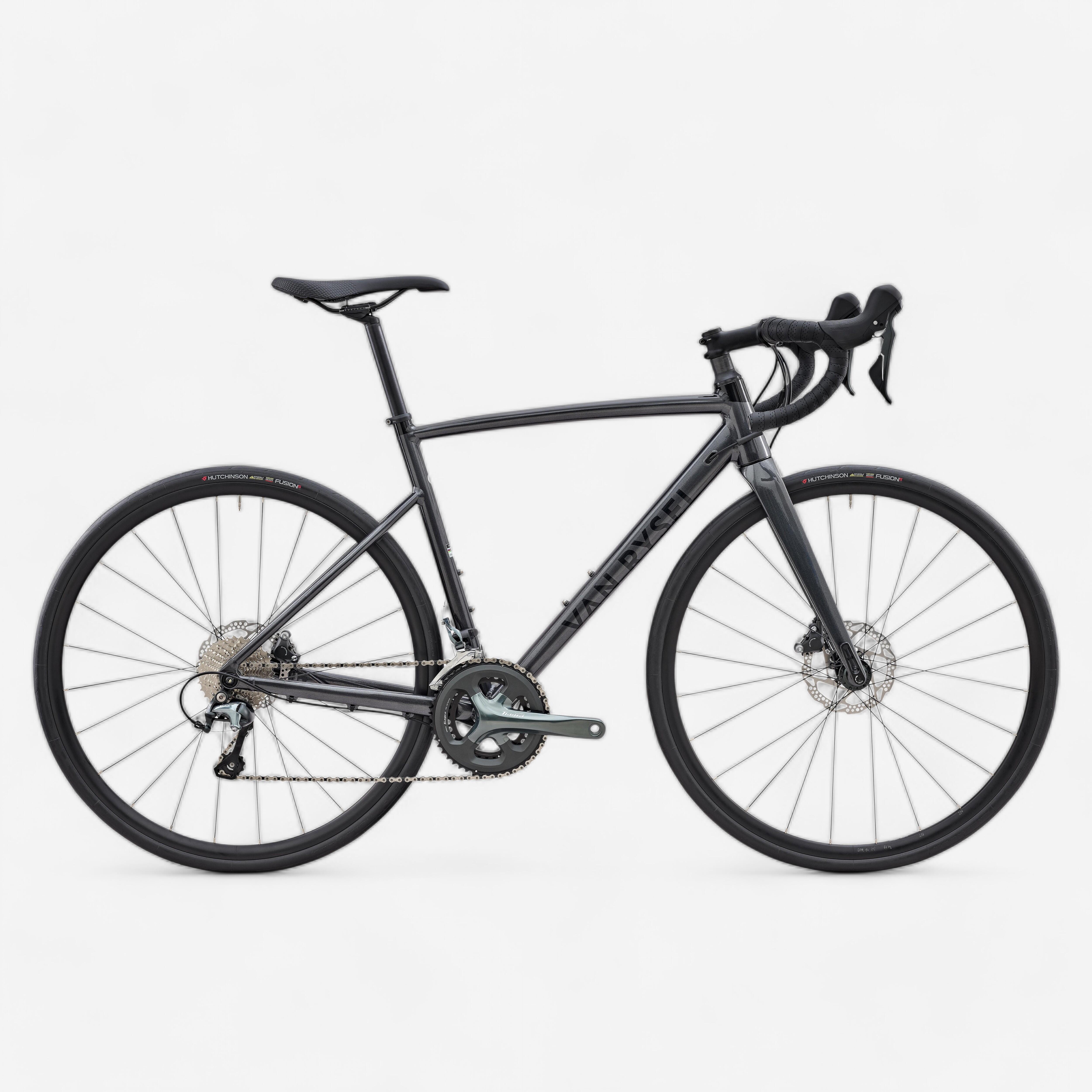

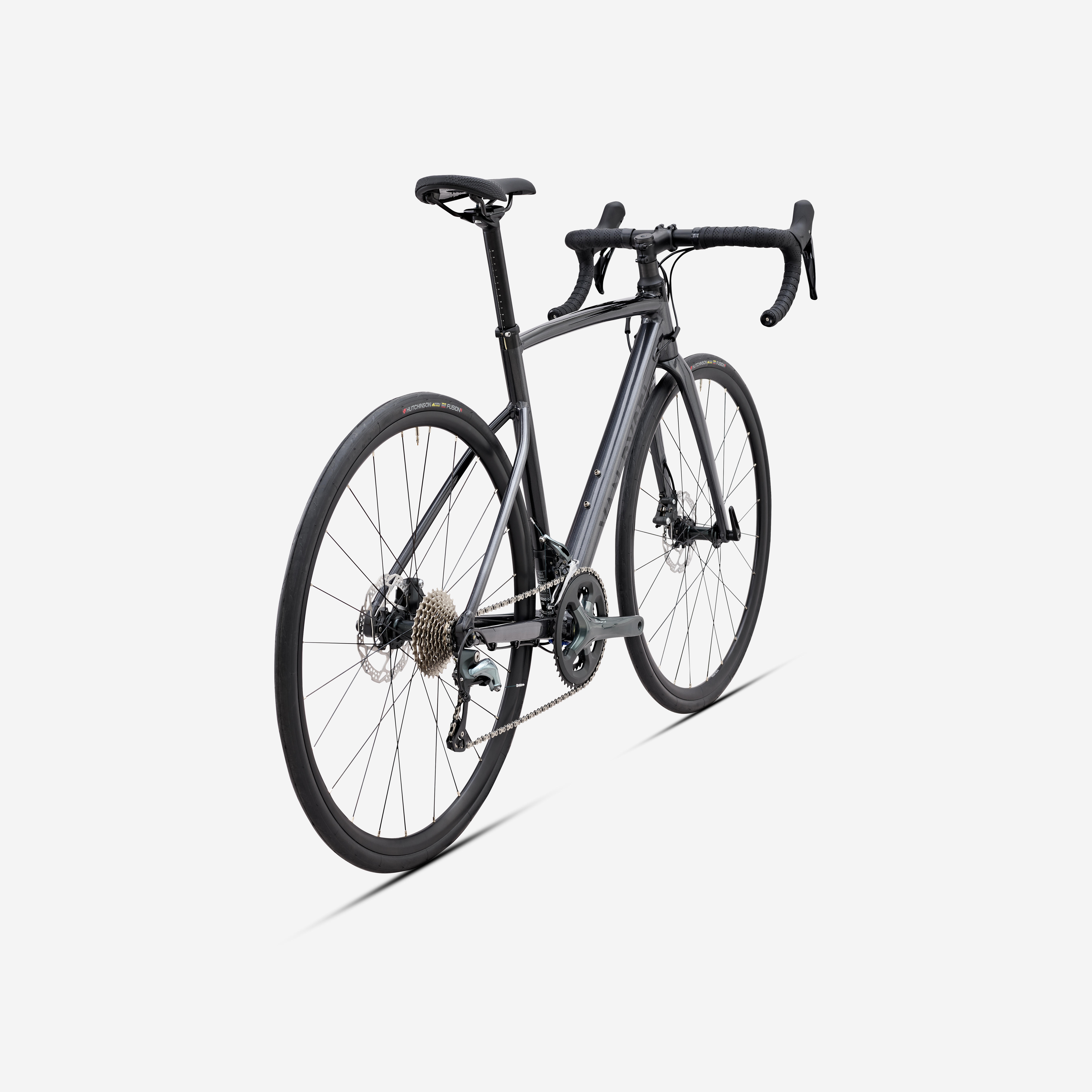

Name: Endurance Road Bike - Shimano Tiagra 2x10-Speed NCR AF
Brand: VAN RYSEL
SKU: 4421459
Price: 1750 CAD
Availability: InStock
Rating: 4.7 (27 reviews)

Shimano Tiagra 2x10-speed drive train, 34/48 chainring, and 11/32 cassette

Versatility

160 mm (6 1/4") front and rear Shimano Tiagra hydraulic disc brakes

Braking power

VanRysel Road Perf tubeless ready wheels, Hutchinson 700 x 28 C tires

Efficiency

Aluminum frame and carbon fork, complete bike weighs 9.5 kg (21 lbs) in size M

Lightweight

The Neo Racer is a pure, versatile road bike. It's designed to be comfy and sporty to help you discover the feeling of real speed on a road bike.

Built-In Battery

Type of Bike Frame

Skill Level

Max engine torque

maximum tire clearance (mm)

rim material

cassette

Maximum Load

Power Assisted

Suspension

wheel set weight (g)

front disc size (mm)

Battery Capacity (Wh)

crank

Number of Chainrings

wheel material

Removable Battery

Wheel Size

rear disc size (mm)

Electric Motor Position

bike fork weight (g)

bike frame weight (g)

Charger Type

Brake Type

Number of Speeds

Connectivity

Autonomy (km)

Weight (kg)

Axle Type

The Neo Racer Aluminum Frame (NCR AF) is the first sports bike in our range. It excels in the versatility demanded by novice road cyclists.It's perfectly suited to outings on the plains or in the mountains. Its large frame clearance means it can even be fitted with 38 mm tires for use on rolling trails.
This is a bike with a sporty geometry. The hydraulic disc brakes are there to ensure your safety.

The NCR AF Range

The frame is made from 'double butted' 6061 aluminum, which means that the aluminum is manufactured in 2 different thicknesses along the length of the tubes.
The aim is to reduce weight while ensuring a strong, rigid frame.

The welds are polished for an undeniable aesthetic effect.

The fork is made from carbon for more precise handling and reduced weight.

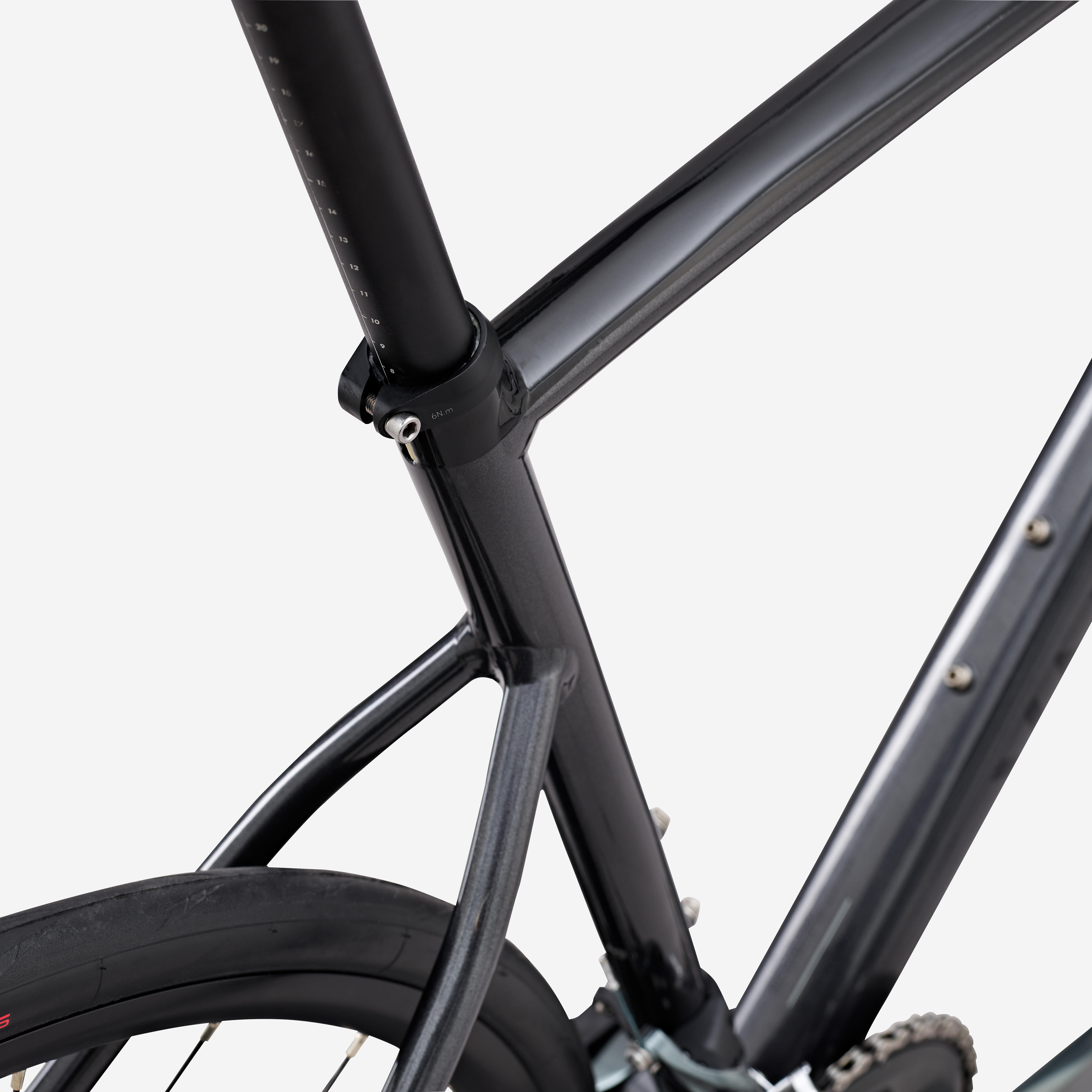

A closer look at the frame

The NCR AF Tiagra comes with the full Shimano Tiagra (4700) groupset.
The total weight of the groupset with disc brakes is 3350 g (118 oz.).

This groupset gives you precise, reliable gear changes. It also comes with hydraulic disc brakes. The handles are thin and compact, with optimized ergonomics so that you can easily reach the levers. (R4720 shifters)

It comes with all of Shimano's latest-generation groupset technology.

Cockpit

This bike comes with a Shimano Tiagra (FC 4700) 48/34 double chainring. The 48T ring gives you a higher cadence and lets you stay in the middle of the cassette for longer.

10-speed cassette (CS-HG500-10) with the following increments:
11-12-14-16-18-20-22-25-28-32

If you want to change the cassette, the derailleur can take up to 34t. (RD 4700 GS)

Chain: KMC TWX10

Crank length according to size:

XXS / XS : 165 mm (6 1/2")
S: 170 mm (6 2/3")
M: 172.5 mm (6 4/5")
L/XL: 175 mm (7")

Gearing

Please note that it is important to regularly service your drive train, especially if you ride in difficult conditions (wet and/or dirty roads).
Regular maintenance will help your drive train to last for longer.

Regular chain checks are essential, using a wear tester available from Decathlon (item code: 8351086).

Drive train maintenance

When buying a bike, it’s important to take into account servicing costs, especially the drive train.
We provide estimates based on average lifespans below to give you a general idea of what to expect. These will, of course, vary depending on the care you take of your drive train.

The average lifespan of a well-maintained chain is 5,000 km (3000 mi).
The average lifespan of a cassette is 10,000-12,000 km (6200-7500 mi).

A poorly maintained chain can jump, potentially damaging your bike’s frame.

Drive train lifespan

Shimano Tiagra disc brakes with 160 mm (6 1/3") rotors at the front and back.
The Shimano Tiagra brakes are hydraulic. This gives you progressive, more powerful braking than with cable-actuated brakes.

You will need to bed these brakes in. Simply brake gradually 20 times at a low speed (20 km/h [12 mi/h]), then repeat at 30 km/h (19 mi/h). Make sure to bed in both brakes.
Bedding in creates more friction between the disc and brake pad.

Disc brakes

Hydraulic brakes function using a closed circuit between your brake lever and your caliper.
There is a hose to maintain the seal.
With time, you’ll see a normal loss of pressure in your hoses, leading to a loss of braking efficiency. When your brake guard is too soft, or you stop short against your handlebar, you need to bleed your system. This requires specific tools and knowledge.

Hydraulic brake maintenance

Please Note:Never squeeze the brakes without a wheel being attached, as you could get the brake pads stuck together.

If the rotor is touching the pads, here's how to realign the wheel and caliper:

- Loosen the wheel axle
- Brake hard and tighten the axle at the same time
- If the rotor is still touching the brakes, do the same thing and loosen the caliper
- If you're unable to resolve the issue, please visit one of our workshops.

Warning and adjustment

Road Perf wheels weigh 1760 g [62 oz.] (810 front / 950 rear).
Thru axle (100 x 12 front / 142 x 12 rear).
23 mm profile height.
24 double restricted stainless steel spokes for improved corrosion resistance and weight savings.
19 mm internal width, asymmetrical rim for better stress balancing and a stronger wheel.

Tubeless rim tape, tubeless ready wheel. Tubeless valve in the box.

Van Rysel wheels

Size:700 x 28 C
The new ElevenStorm® rubber meets the five main performance criteria for a high-end tire: grip, rolling performance, durability, puncture resistance, and comfort.
This version offers a perfect balance for cyclists who want to go faster and farther. When combined with a Kevlar® strip under the tread, it lets you ride with peace of mind and is rated to last for over 4,000 km (2,500 mi). Tubeless ready.

Hutchinson perf black tire

We recommend switching your tires to tubeless using the tubeless valve that comes with this bike.

Tubeless is more comfortable and more efficient, and the tires can self-repair when you get small punctures.

Of course, you should always carry an inner tube in your repair kit, just in case your tire gets a slightly bigger puncture.

Tubeless or inner tube

Van Rysel aluminum seat post, 27.2 mm (1") diameter

XS: 250 mm (10")
S, M, L: 350 mm (13 3/4")
XL: 400 mm (15 3/4")


Van Rysel Sport 900 saddle

Position

Pedals

Please refer to the bike frame geometry table.
If you're between sizes, a shorter bike is better if you want something more responsive and lively. However, if you want to be comfortable when riding long distances, the bigger size is your best bet.

Sizing

This bike has been tested for a maximum load of 110 kg [245 lbs] (cyclist + equipment).
