Microshift SWORD 10-speed drive train - 40T single chainring - 11/48 cassette

Versatility

TRP SPYRE mechanical disc brakes - 160 mm front/rear discs

Braking power

Aluminium wheels - Hutchinson Touareg 700x40C tires - tubeless ready

Efficiency

Aluminium frame - Carbon fork - complete bike weighs 10.8 kg in size M

Lightweight

load capacity

Our new range of gravel bikes with aluminium frame was designed to provide maximum comfort and enjoyment on your regular rides.

tire width x wheel size

Built-In Battery

Type of Bike Frame

Skill Level

Type of Bicycle Fork

Max engine torque

seat post diameter

rim material

rim type

wheel rim height (mm)

Maximum Load

Power Assisted

Suspension

tubeless compatibility (wheel)

front disc size (mm)

Battery Capacity (Wh)

crank

Number of Chainrings

Removable Battery

Wheel Size

rear disc size (mm)

Electric Motor Position

Charger Type

Brake Type

Number of Speeds

Connectivity

Autonomy (km)

Weight (kg)

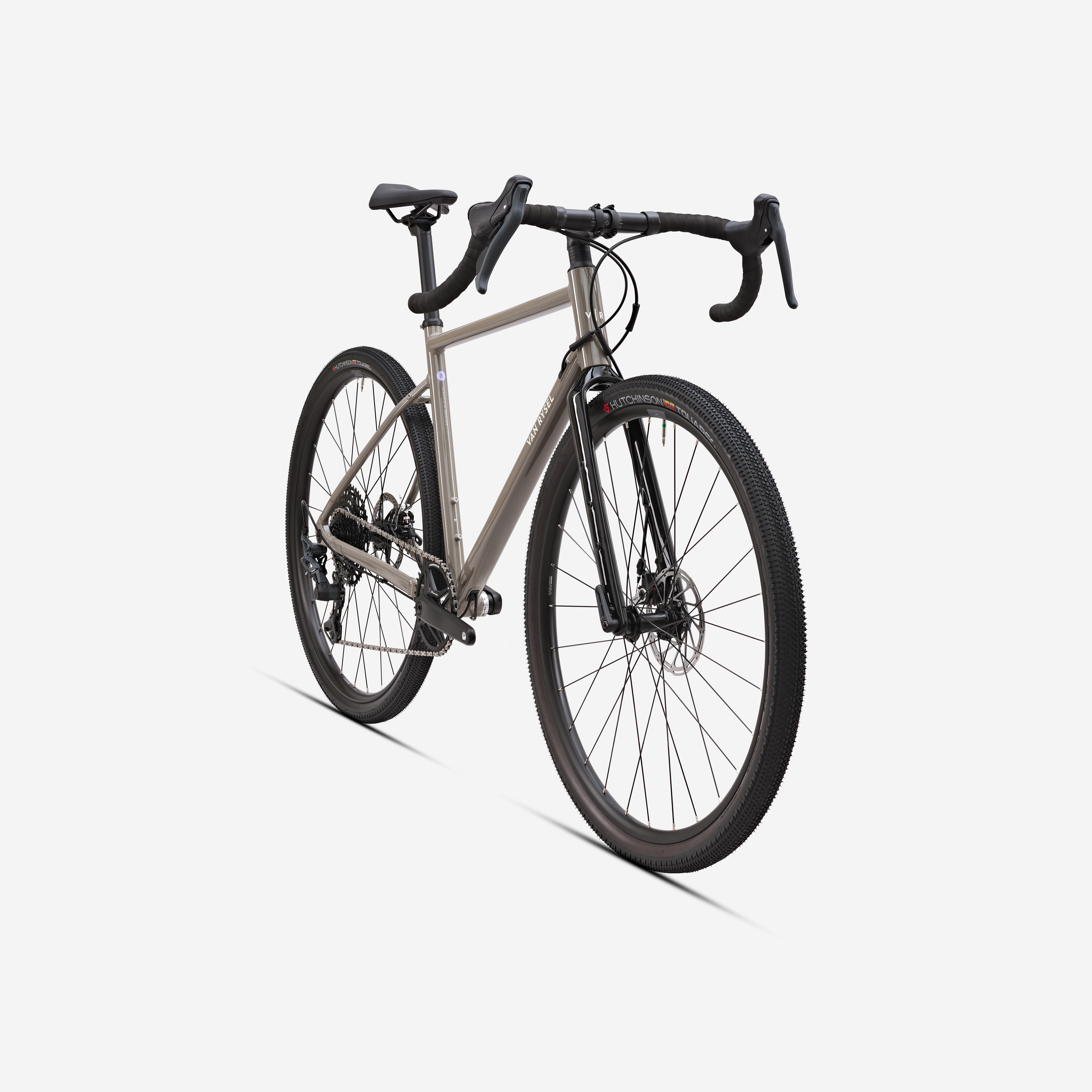

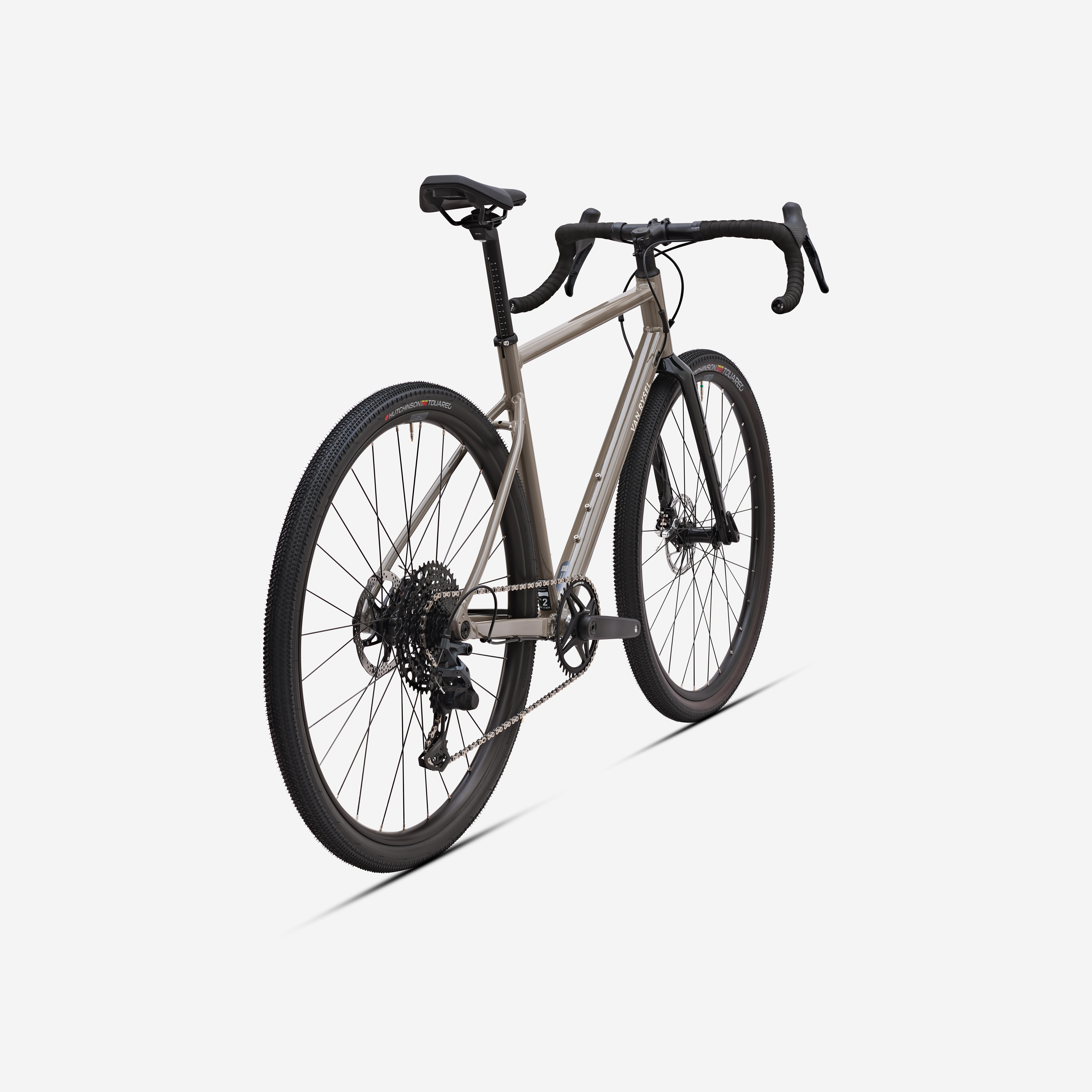

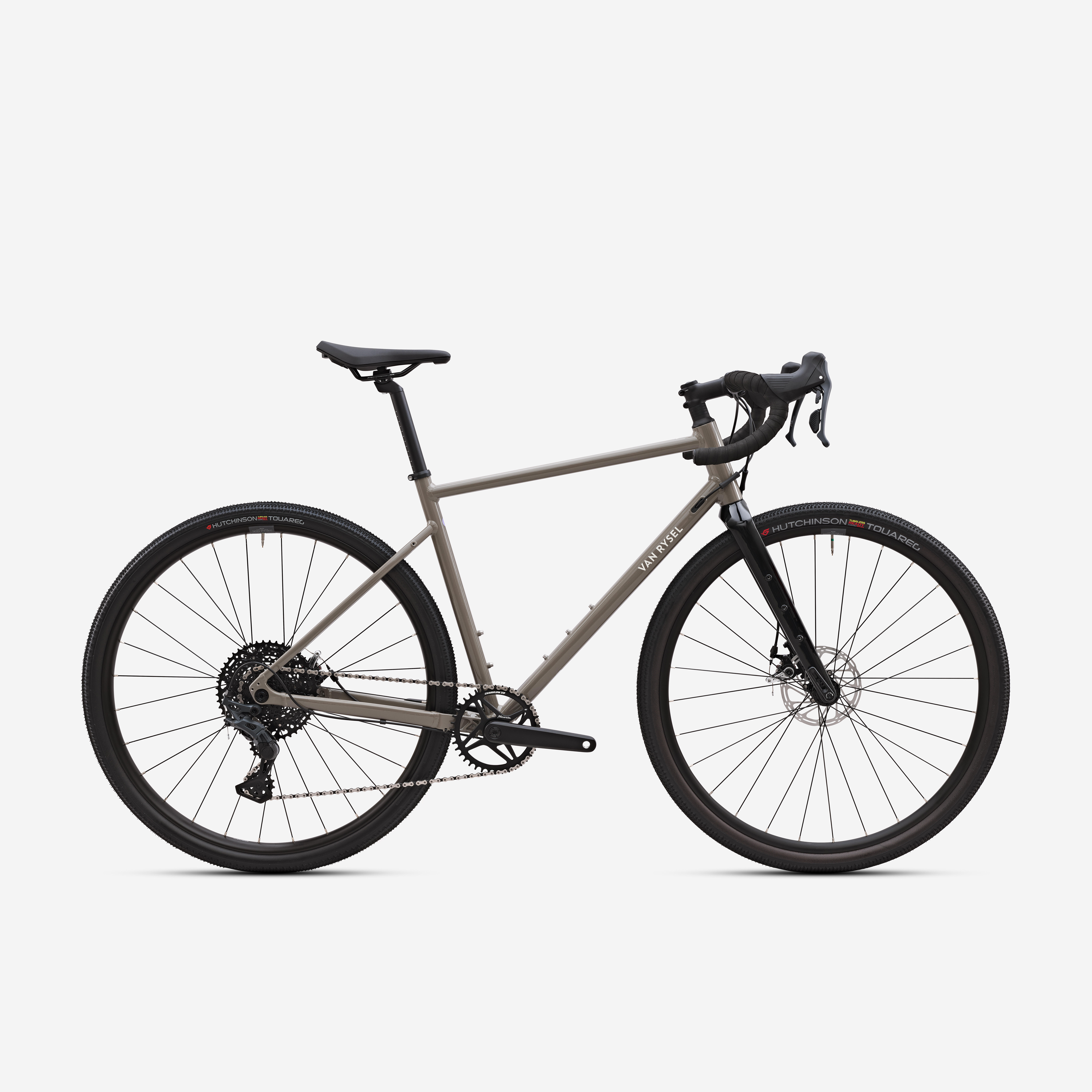

The AF gravel is the new bike that we've developed for your regular gravel rides and your first bikepacking adventures.If you want to get way from it all and have some fun, this bike is for you.The geometry has been improved to make the bike more comfortable and versatile.You can mount tyres up to 50 wide (in 700!) to venture out on long winding trails in search of freedom and thrills.

THE AF GRAVEL RANGE

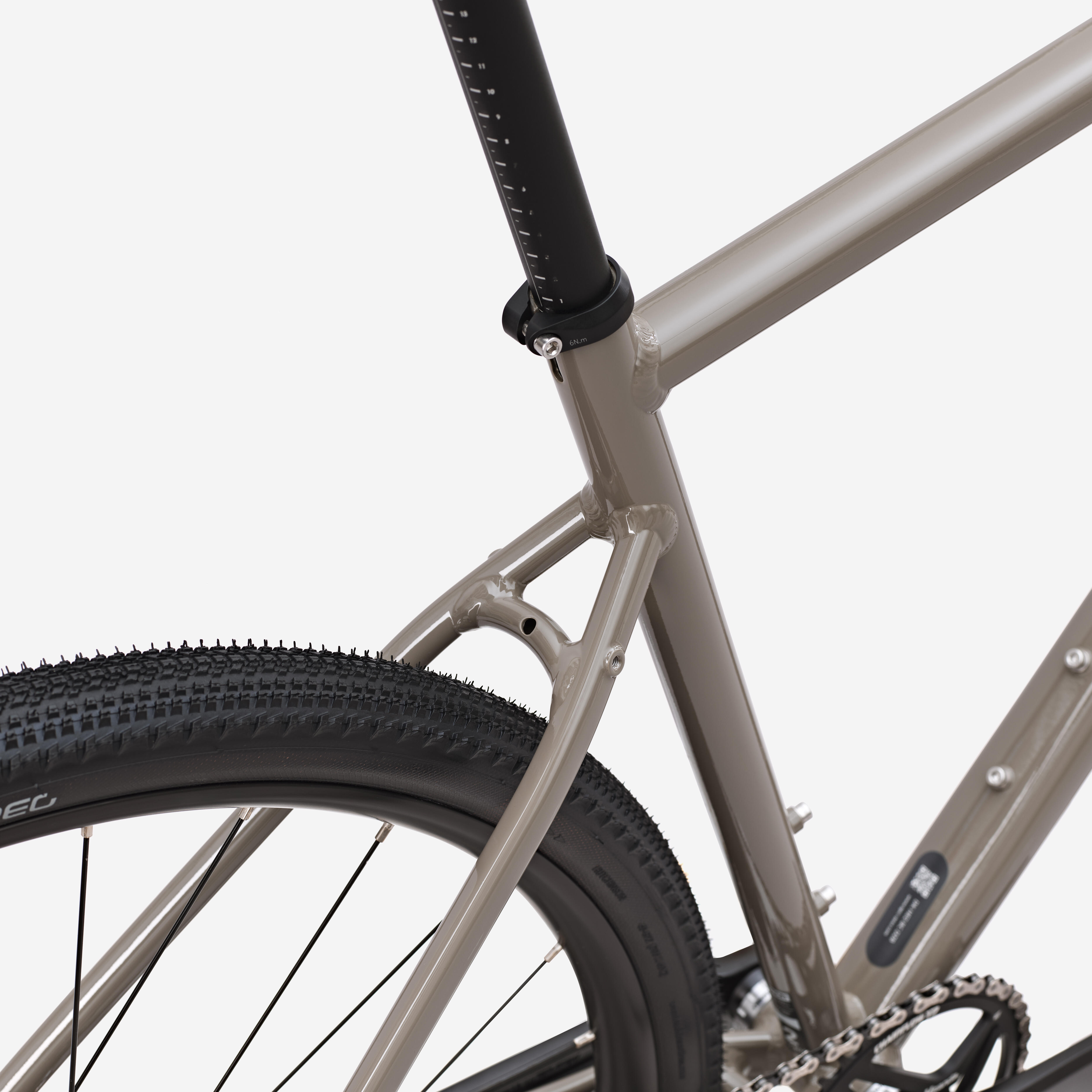

The GRVL AF frame is made from double-thickness 6061 aluminium which reduces its weight and makes it more responsive, for a very playful bike.Its geometry was designed for comfortable riding on gravel.The frame is compatible with tires with a cross section of up to 50 mm.The frame weighs 1,870g in size M.

HIGH-QUALITY, COMFORTABLE ALUMINIUM FRAME

The GRVL AF fork is made of carbon for rigidity and propulsion, with an aluminium pivot to guarantee sturdiness.Two side inserts enable you to attach extra bags or bottle carriers to set off on an adventure.The fork is compatible with tyres with a max cross section of 50mmThe frame and fork are compatible with mudguards and a pannier rack.

Carbon fork

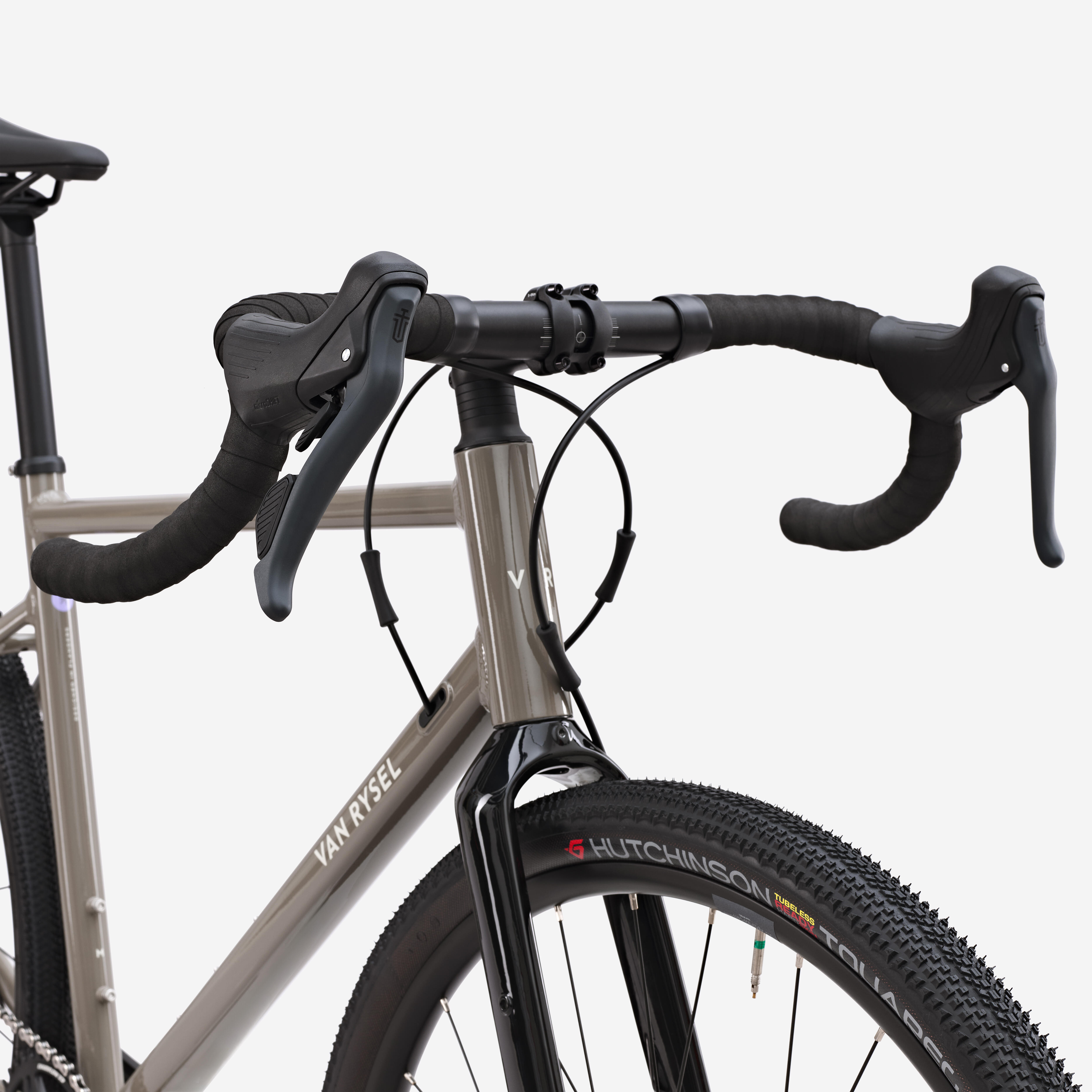

The GRVL AF 31.8 mm diameter handlebars are made from 6061 T6 aluminium.The 16º flare is ideal for gravel riding, for a comfortable ride and good manoeuvrability.Handlebar width depends on bike size:
XS - 400 mm
S - 420 mm
M/L - 440 mm
XL/XXL - 460 mm
The reach is 70mm and the drop 130mm.The stem is made from 6061 T6 7º/ -7º aluminium
Stem length according to bike size:XS - 60 mm
S - 70 mm
M - 80 mm
L - 90 mm
XL/XXL - 100 mm

RIDING POSITION:Handlebar and stem

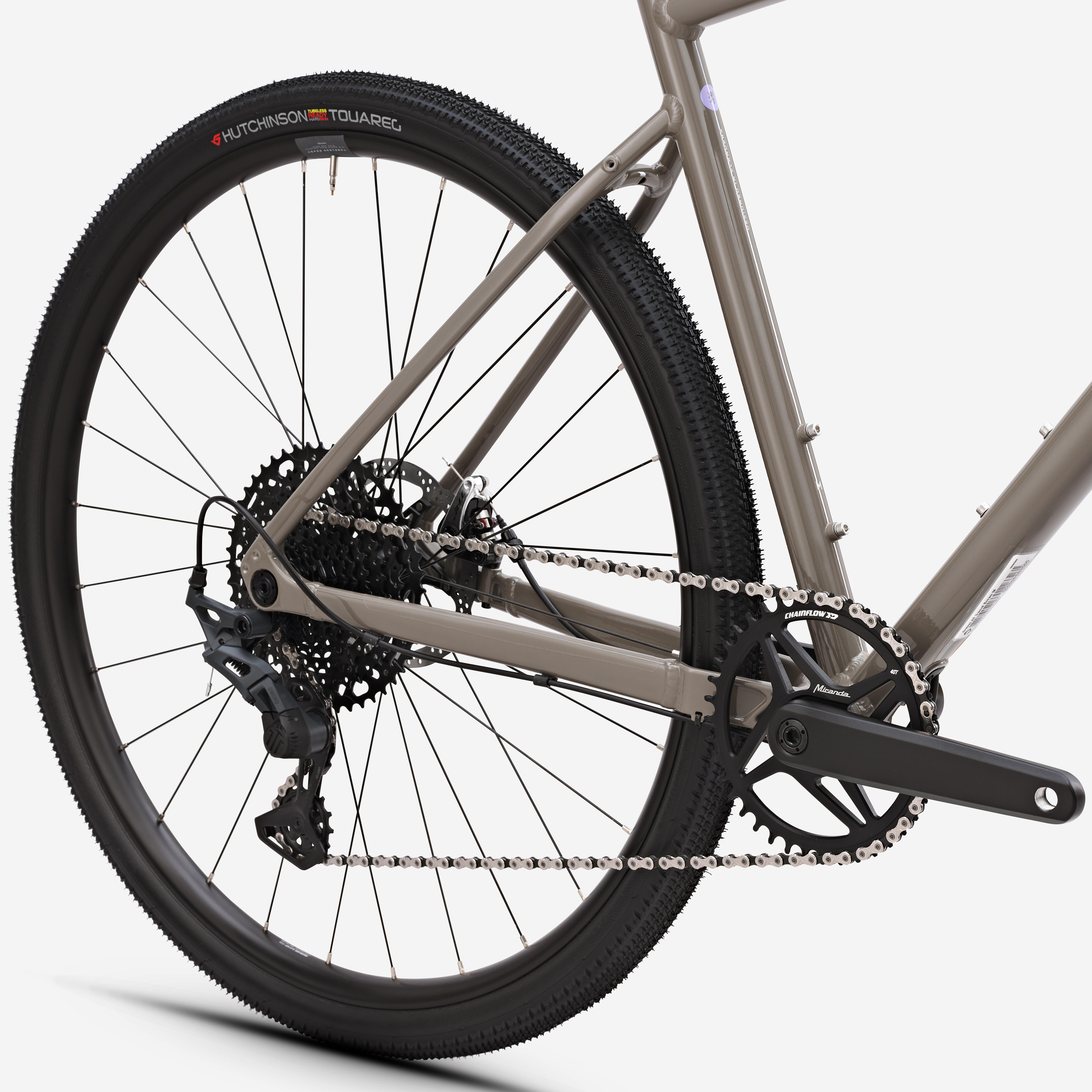

This bike comes with a Microshift SWORD single chainring drivetrain and 10 gears.Microshift SWORD 1x10 shifter
Miranda 40 T Chainflow 3D Chainflow aluminium crankset
Crank length:
XS/S - 165 mm
M/L - 172.5 mm
XL/XXL - 175 mm
Microshift SWORD 1x10 0 RD-7005M rear derailleur
Microshift H104 Advent X 10S 11/48 cassette
KMC X10-1 116 link chain
BSA 68mm  bottom bracket
Prowheel  PW-BB68+

MICROSHIFT SWORD 1 x 10 SPEED DRIVETRAIN

TRP SPYRE double piston mechanical brakes
Front/rear TRP 160 mm centerlock front/rear discs
Microshift SWORD G-7000 brake levers
Semi-metallic TRP pads

Simultaneous actuation of two brake pads, combined with the ability to fine-tune the brake settings, delivers powerful, precise braking.

Mechanical disc brakes

6069 aluminium rims
Internal width 27mm
External width 31.4mm
Rim height 19 mm
28 spokes
Centerlock axle
Front thru axle 12x100mm M12x1.5
Rear thru axle 12x142mm M12.x1.5
Tubeless ready (kit not included)
Wheels compatible with tyres 35mm wide minimum and 50mm wide maximum.Wheel weight: 1,877 g

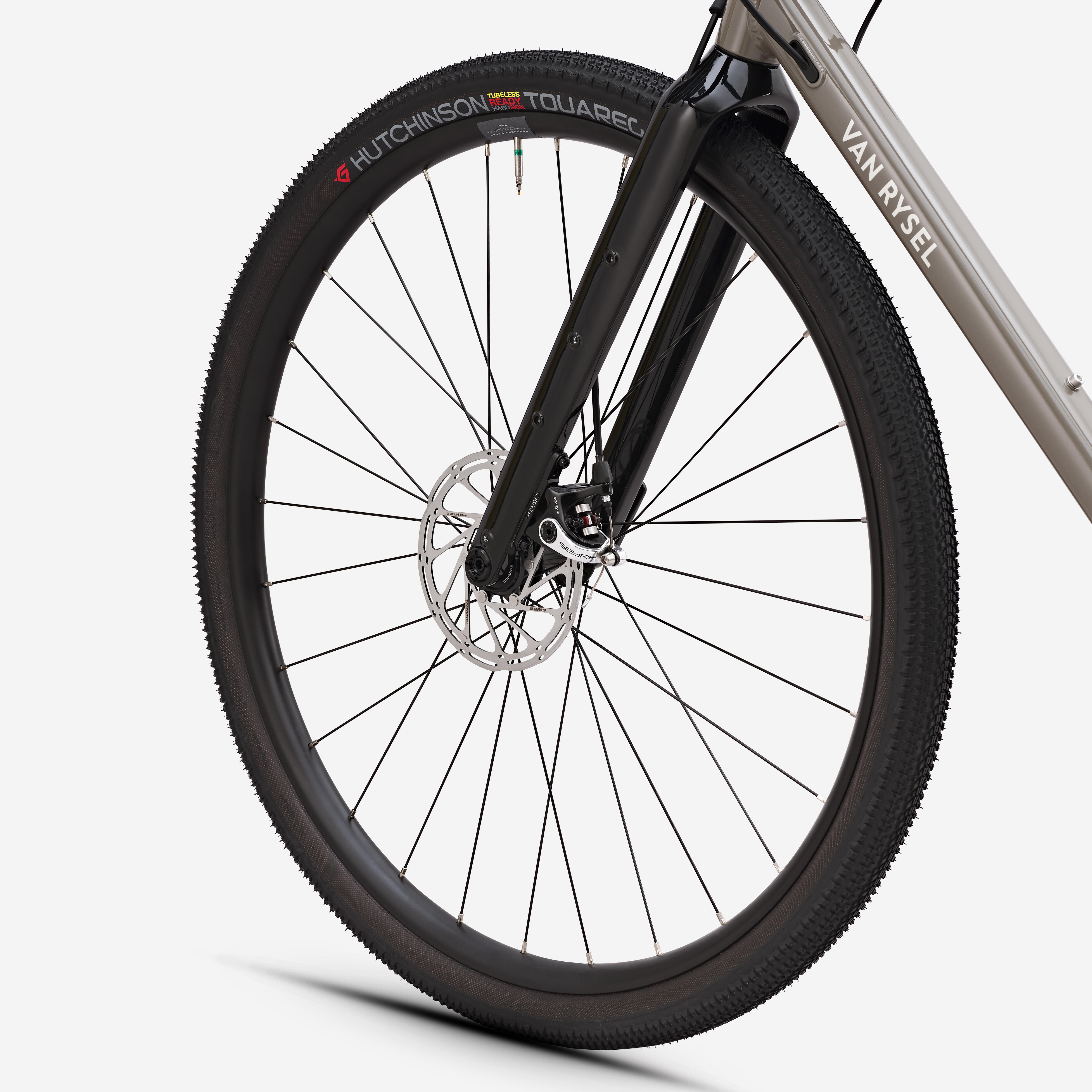

ALUMINIUM WHEELS DESIGNED FOR OFFROAD BIKING

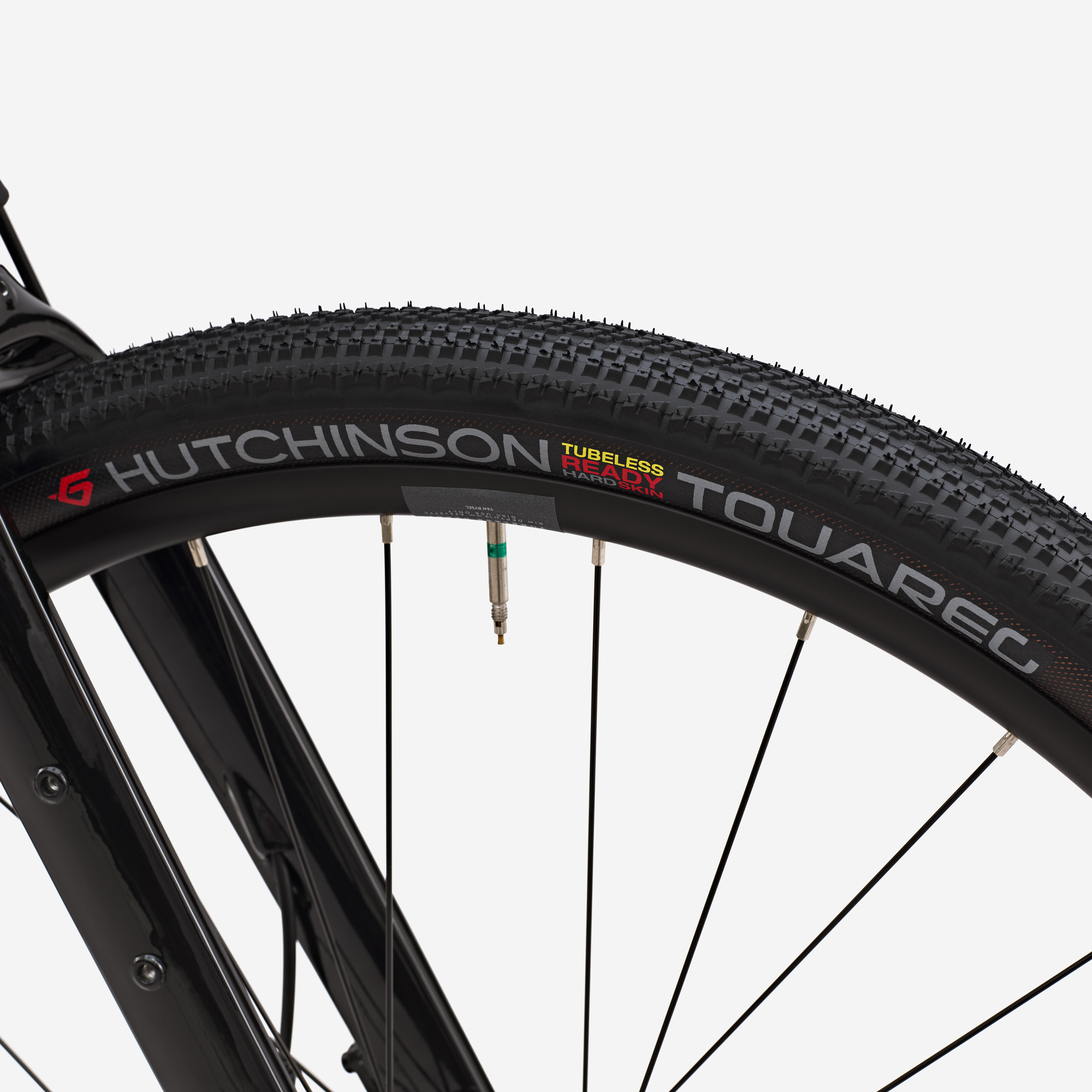

Hutchinson Touareg 40x700mm tyres
Weight 490 g per tyre.Inner tube pressure: min:2.5 bar/38 psi
max:3.5 bar/51 psi

The tyres are fitted with an inner tube but can be switched to tubeless with valves ref 8551979 and sealant ref. 8363393

Versatile Hutchinson Touareg tires

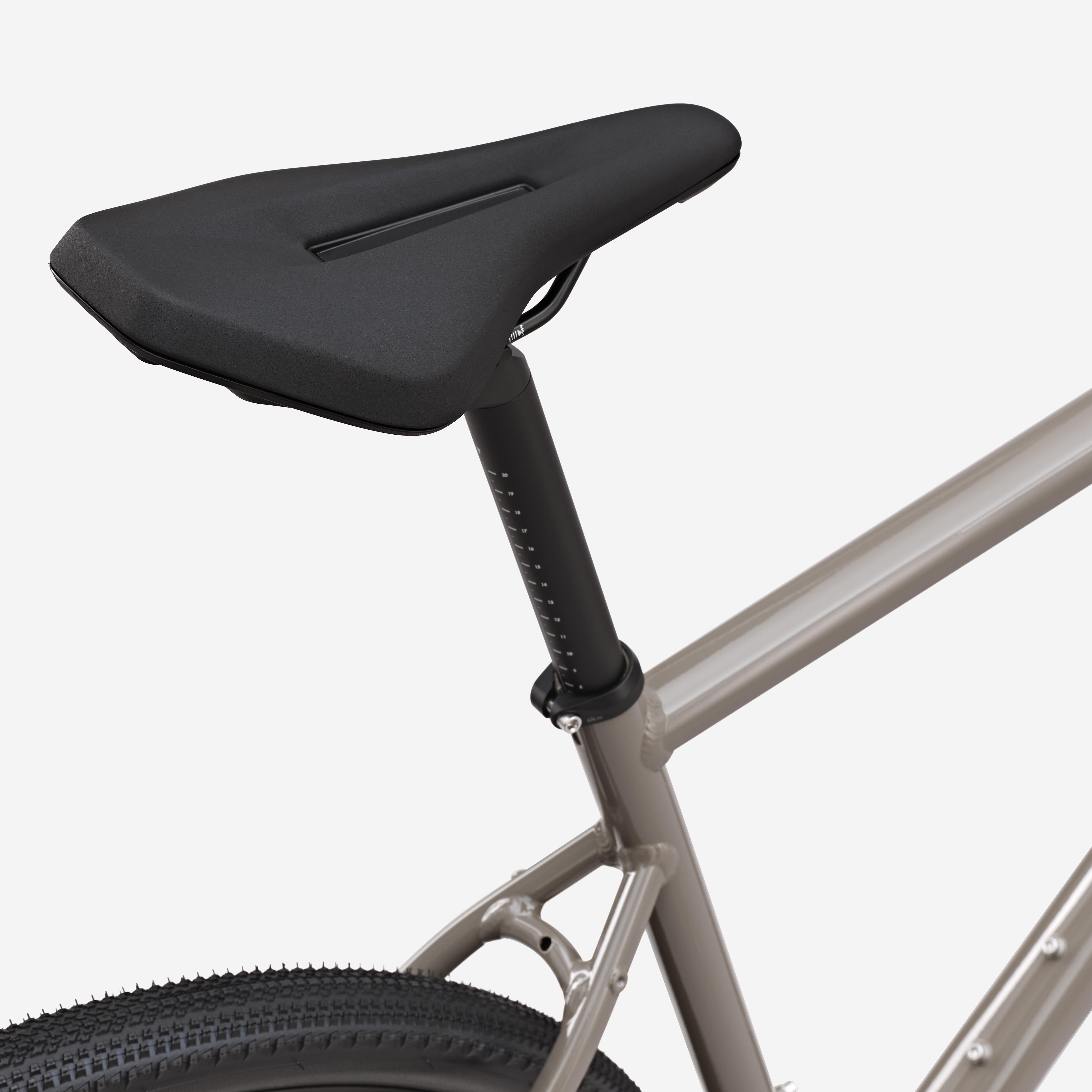

DECATHLON COMFORT 30º saddle
Width:155 mm
Length: 250 mm
Steel clamp

B'TWIN 6061 T6 aluminium seat post
Diameter:27.2 mm (6 1/4")
Height: XS / S: 300 mm
M/L/XL: 350 mm
XXL: 400 mm

The natural flex of the seat post (thanks to its 27.2 diameter) filters vibrations and impacts for greater comfort

Position

Your GRVL AF comes with a box that includes:
  - Platform pedals, we recommend using clipless pedals to take full advantage of this bike's performance
- 2 brake clips
- 1 bell
- 1 front and rear light
- 1 torque spanner

LITTLE THINGS TO KNOW ABOUT THE GRVL AF

This configuration with the Microshift SWORD drive train weighs approximately:XS: 10.64 kg
S: 10.73 kg (49 lbs)
M: 10,83 kg
L: 11.03 kg
XL: 11.10 Kg
The maximum load (user+load) is 110 kg whatever the bike size.

Bike weight

We recommend avoiding high-pressure water jets when washing your gravel bike to avoid damaging it.We recommend cleaning your Gravel bike after each ride, particularly after confronting particularly muddy or dusty terrain. In addition, remember to check your tire pressure and braking efficacy before each ride.

Care instructions

When using bags or other accessories, you can use the following transparent protective stickers: 8486947.
Resistant to temperature variations, water, tears and UV rays.

PROTECTING the FRAME

Choose your bike size based on your height and build (arm span and leg length).
If you are between sizes, opting for the smaller size will be more comfortable and make it easier to tackle gravel trails.
XS: 154-165 cm
S: 165-173 cm (20 1/2” - 21 2/3”)
M: 173-180 cm (21.7"-23.2")
L: 180-188 cm (22 1/2" - 23 1/5")
XL: 188-200 cm
