Easy opening/closing

Efficiency

Lightweight

Compact design

Ease of use

Easy to move

Do not wash.

Do not dry clean.

Do not iron.

Do not tumble dry.

Bleaching excluded.

6061 T6 aluminum frame—lightweight, dynamic, and sturdy.

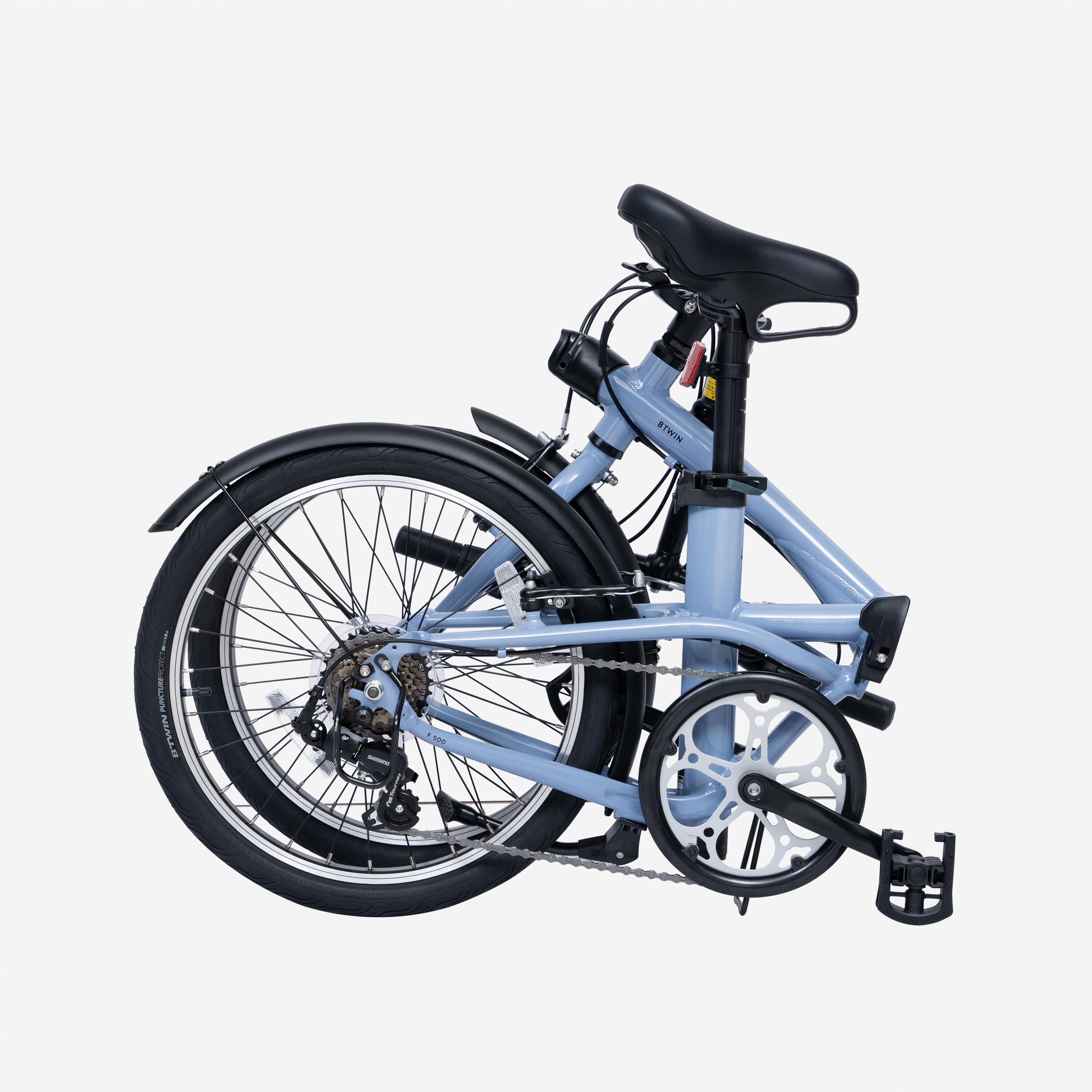

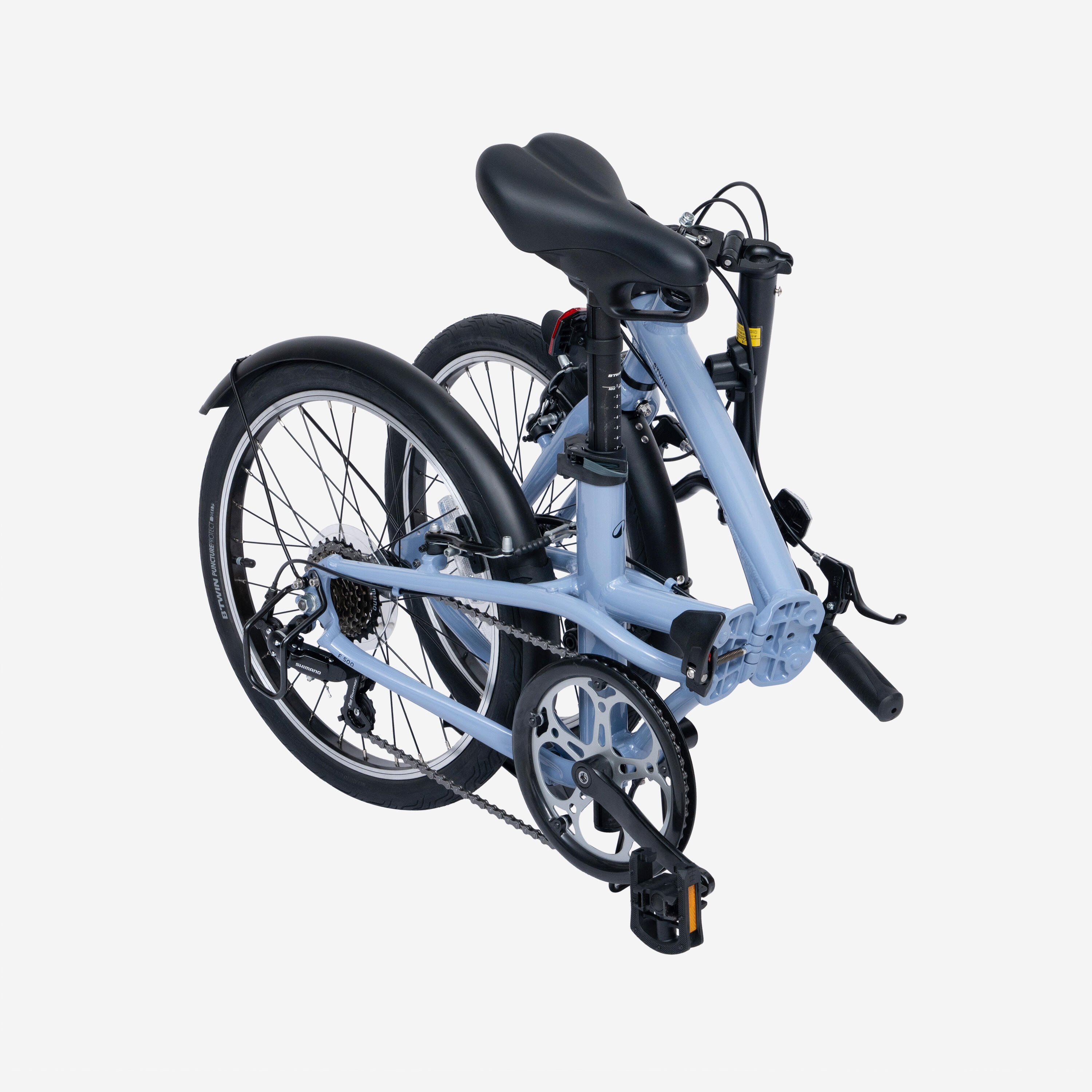

The very easy side-fold system with lever helps to save space: at home, at the office, in the trunk of a car or in a camper... you'll forget your bike is even there. Mechanism to quickly lock the frame and stem so you can keep the bike folded and transport it easily.In order to improve your bike's stability once folded, the frame is equipped with a bike stand under its base.

Frame

Hi-ten steel fork for greater durability.

Fork

Steel V-brake and caliper guarantee effective and progressive braking.

Brakes

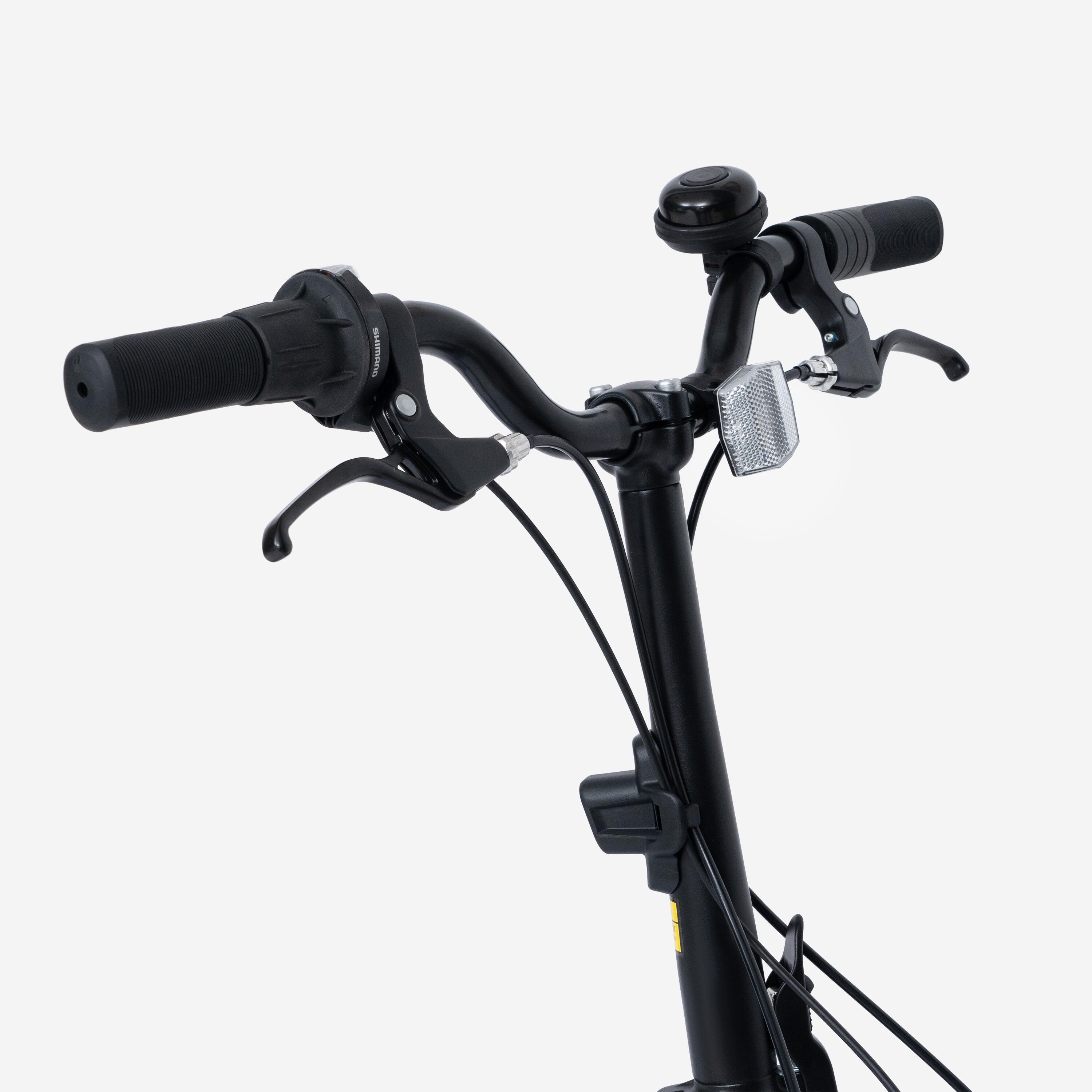

Semi-raised aluminum handlebars with a 60 mm rise for adjusting the steering position to suit your body shape and improve handling.
Handlebar width: 560 mm.
Fixed aluminum stem with quick-release lock for greater stiffness compared to a height-adjustable stem.
Distance from saddle to handlebar: 540 mm. Bottom bracket to saddle distance: 480 mm to 780 mm.

Handlebars/stem/steering

- Anti-theft, anti-rotation aluminum seat post 31.6 mm in diameter.- Comfortable, seamless foam saddle to stop water from getting in.
- 70° back position

Saddle / seat post

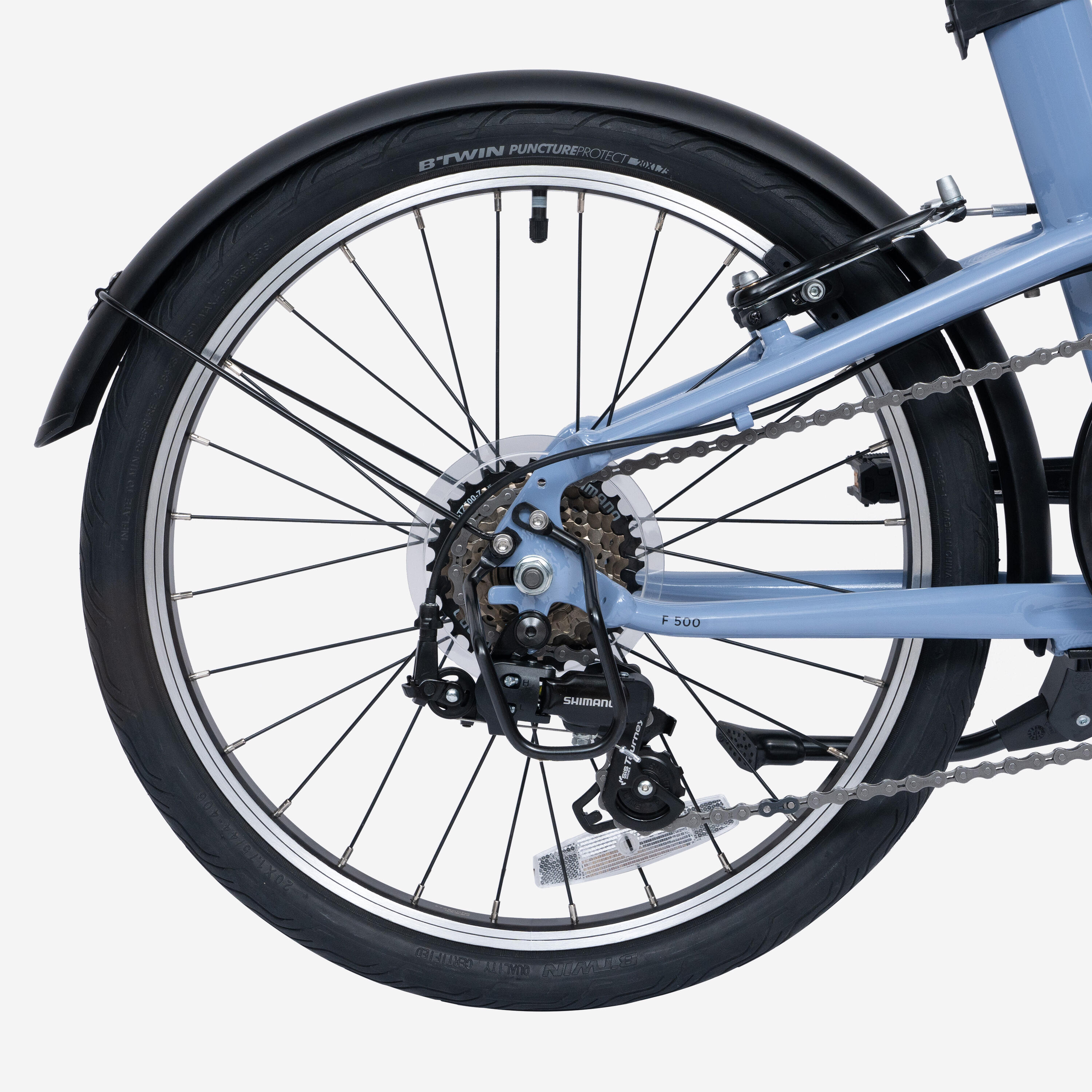

Wheels

Tires with anti-puncture reinforcement.
Size 20 x 1.75 in.
We've developed these tires using Skinwall technology for lower weight and higher performance.
To minimize the risk of punctures and boost your bike's performance, inflate your tires to between 51 psi and 65 psi.

Tire

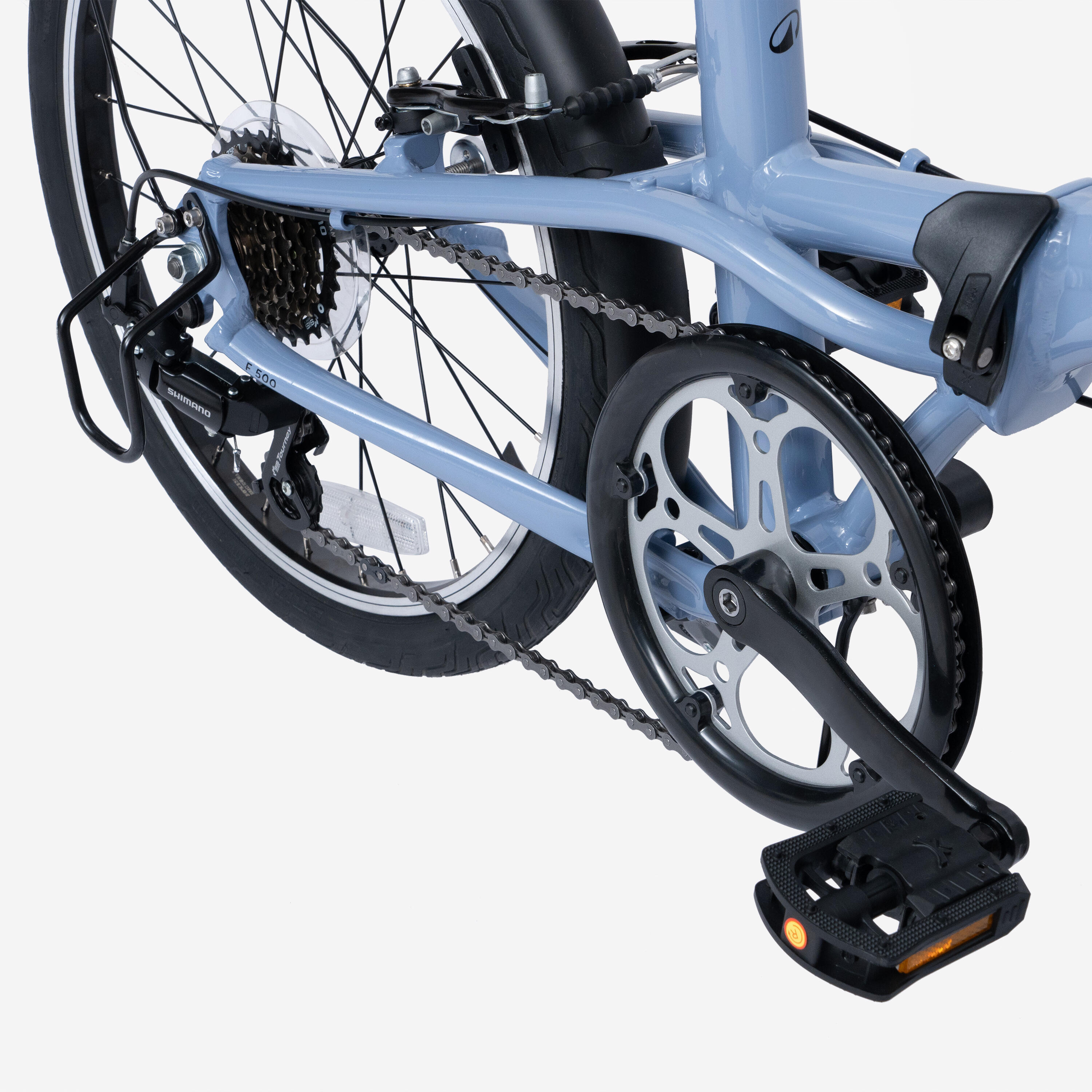

- The fold-up pedals reduce bulk when the bike is folded. Once the pedals are folded up and the stem folded down, the bike can be stored against a wall and takes up very little space (26 cm wide). - 52-teeth chainring.- Steel cranks: 170 mm.

Crankset

The frame has inserts to attach the special rear pannier rack for 20 in folding bikes.

Compatible with a rear pannier rack

- The 20 in protective cover (ref: 8271631):
can be used to cover your bike during transport (train, car, intercity bus, etc.). The cover comes in a zip-up pouch that you can attach to the underside of your bike’s seat.

- smartphone holder (ref: 8595221):
clips onto the bracket on the handlebar.

Specific accessories compatible with folding bikes

The bike comes with mounting points on the frame (above the front wheel).

/!\ When your bag is full, you won't be able to lift up the front wheel to mount sidewalks or curbs.

How can you carry your bags at the front?


- Pannier racks that attach to the seat post are not compatible either.
- Not compatible with child seats.
- Not compatible with child trailers.

Accessories that are not compatible

Bike stability: 2 stands
- Adjustable stand with a button to adjust the length. The stand keeps the bike stable when it's unfolded (whether or not you have bags on it).

- Frame support stand that the bike rests on as you fold it and it protects the chainset.


Bike stability: 2 stands

One frame size only.

This bike's geometry is comfortable for cyclists between 1.45 and 1.85 m (4'9" and 6'1") tall.

This bike complies with the requirements of standard ISO 4210.

The maximum load is 100 kg [220 lb] (bike + user + luggage). Above this weight, the warranty no longer applies.
