Name: Elops 520 Low Frame City Bike
Brand: ELOPS
SKU: 2166411
Price: 520 CAD
Availability: InStock
Rating: 4.2 (896 reviews)

3 sizes, upright riding position, height-adjustable handlebar, ergonomic grips.

User comfort

Single-chainring, 6-speed grip shifter; equipped for transport (pannier rack).

Ease of use

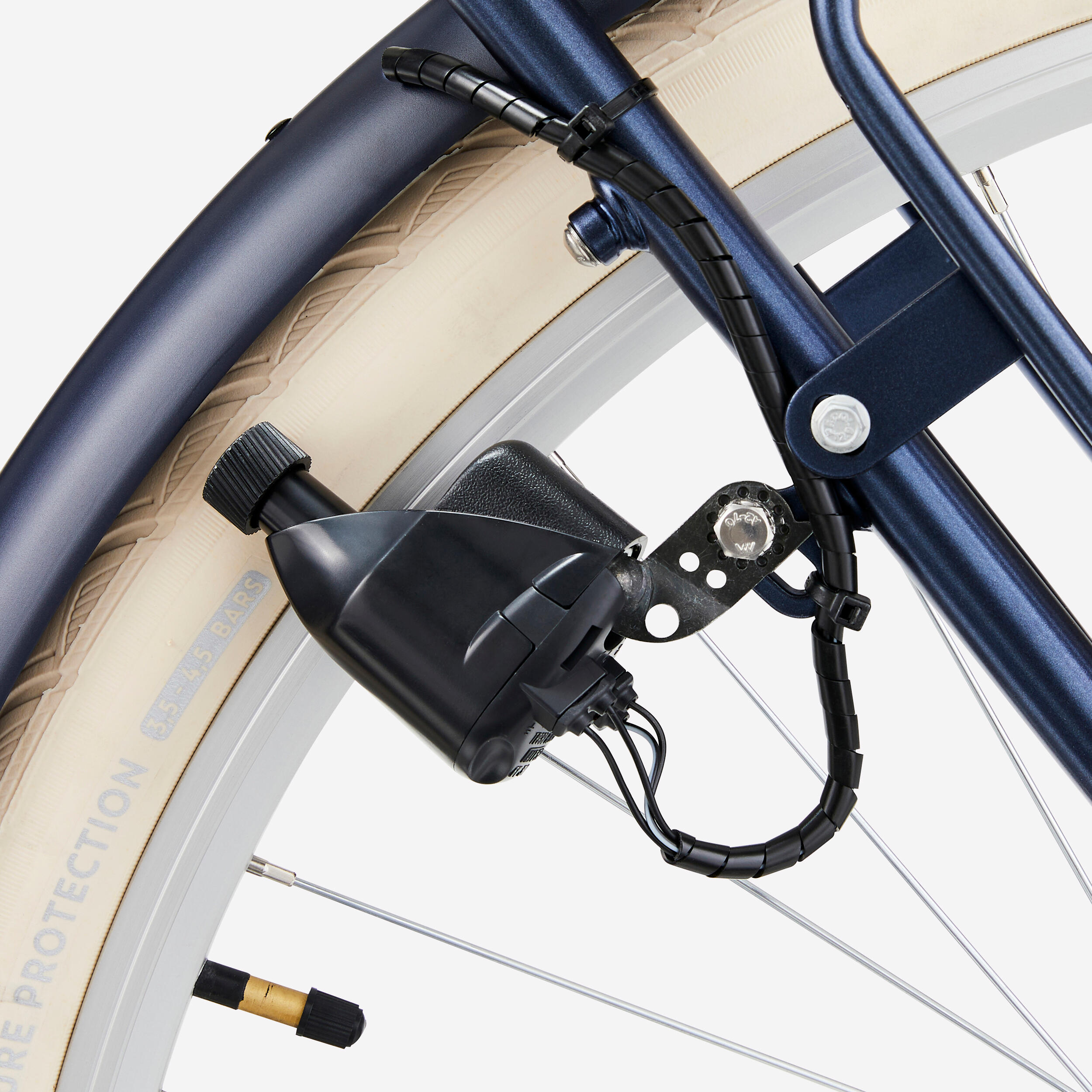

Lights powered by a rim dynamo (using friction against the tire).

Bike safety

V-brakes with brake pads, easy to use and maintain.

Braking power

Compatible with child seats, pannier bags and safety accessories.

Compatibility

Designed for all your urban destinations regularly and have fun! Enjoy the city with this comfortable, safe, and well-equipped Dutch bike!

Built-In Battery

Type of Bike Frame

Condition

Stem Type

Frequency

chain guard

Type of Bicycle Fork

Max engine torque

bell

rim material

rim type

Maximum Load

Sportsperson’s Height

Power Assisted

Frame Shape

Suspension

Pedal Type

Back Position

Lighting Type

Battery Capacity (Wh)

Number of Chainrings

Removable Battery

Wheel Size

With Mudguard

Electric Motor Position

Charger Type

With Kickstand

Brake Type

Number of Speeds

Connectivity

Autonomy (km)

Weight (kg)

Baby Seat

Made with a steel frame to better absorb vibrations from the road, making your ride more comfortable.  Available in a step-through frame model, making it easier to get on the bike whether you are a man or woman, and a step-over frame model.

Size XS, frame weight: 3.5 kg (7 1/2 lbs)
Size S/M and L/XL, frame weight (steel): 4 kg

Frame

Steel fork to absorb the small bumps in the road and keep you more comfortable as you ride.

Fork

Front and rear steel calliper V-brakes positioned under the frame, giving the bike a nice streamlined look.
Aluminum brake levers


Braking

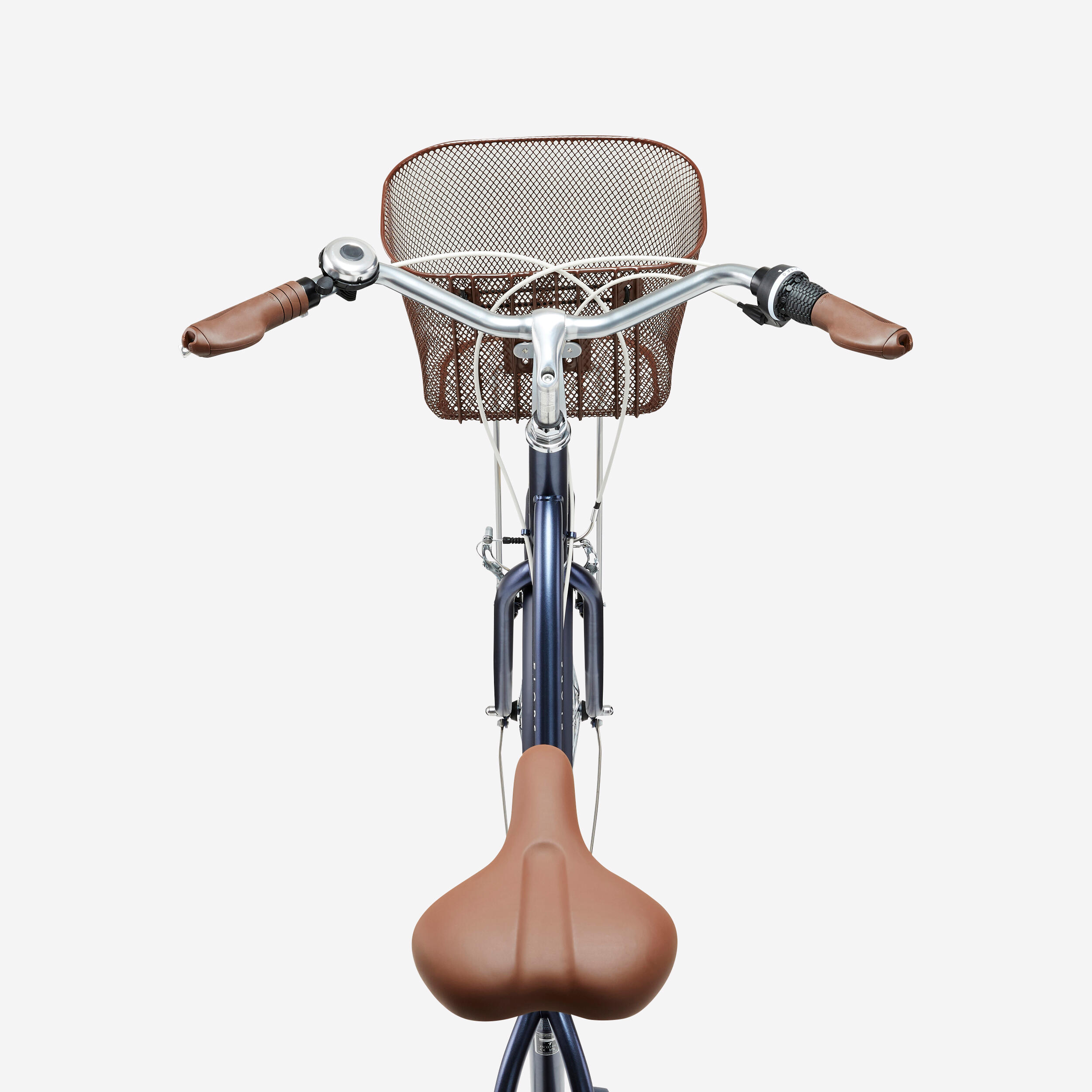

Classic Dutch-style steel handlebar, aluminium damper stem (22.2mm [7/8"] diameter), height adjustable and can be set to a very comfortable upright position. Ergonomic grips for greater comfort when riding regularly; equipped with holders into which you can slide VIOO clips to keep you visible from the sides. A self-centring spring was added between the fork and the frame to help stabilize your bike with a loaded front rack or basket, while riding or parked.

Handlebars/stem/steering

Height-adjustable seat post (28.6 mm [1"] diameter), made of steel to more effectively absorb vibrations and provide a more comfortable ride. Wide saddle whose foam padding varies in hardness based on the pressure points between your bum and the saddle. Saddle is set at a 12° angle for greater comfort; welded in place for added safety. Lockable seat clamp (diameter: 31.8 mm [1 1/4"]) so opportunist thieves can't steal your saddle / seat post.

Saddle/seat post

Front and rear lights powered by a rim dynamo.
Back light built into the rear mudguard and front light built into the frame to protect from theft. Rear reflector built into the pannier rack.

Visibility

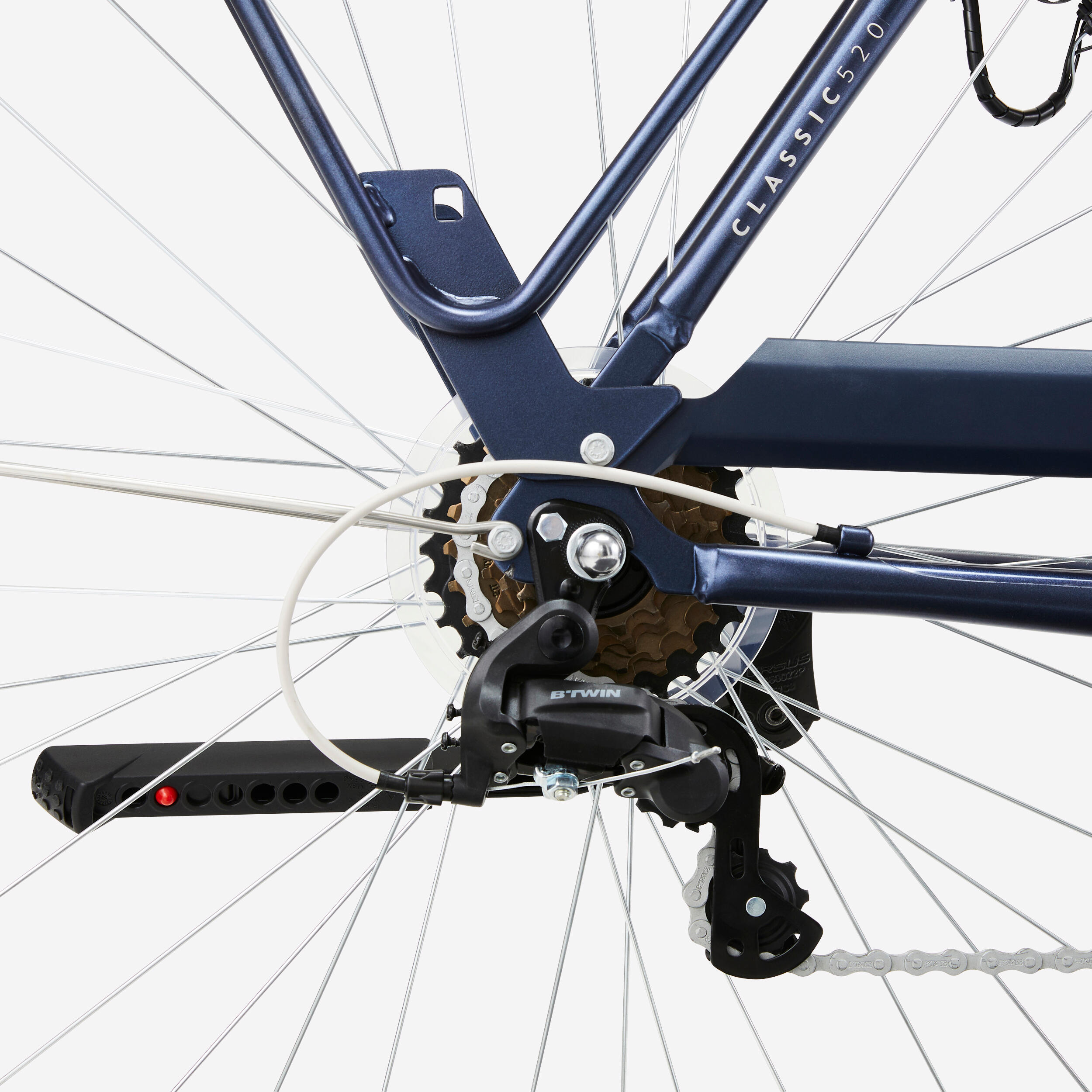

BTwin by Microshift 6-speed drivetrain. 40-tooth single chainring crankset, 170 mm [6 2/3"] steel cranks, 6-speed 14x28 freewheel, rust-resistant KMC chain. 6-speed BTwin by Microshift grip shifter. Development: 3.15 m [10'4"] to 6.29 m [20'7"].

Drivetrain / Pedals

28" aluminium single-walled front and rear wheels, 36 spokes. The XS model has 26" wheels. Why these sizes?
Because it provides our users with the added comfort and rolling quality that a 28" wheel delivers. The front and rear wheels are tightened with bolts to discourage opportunistic theft.
To easily transport your bike in a vehicle, use a 15 mm (1/2") wrench to remove the front wheel.
9 mm (1/3") threaded front/rear wheel axles.

Wheels

Balloon-type tires to smooth out lumps and bumps in the road and keep you more comfortable as you ride while providing better rolling.
The Schrader valves make the tires easier to inflate, even at a garage.
Ideal tire pressure is between 3.5 and 4 bar. 1 mm puncture-prevention nylon tire liner built into the tire tread.

XS tires: Etrto 559-44 (26" x 1.75)
S/M and L/XL tires: Etrto 44-622 (700*45C / 28" x 1.62)

Tires

Bolted on front basket, rear pannier rack, rim dynamo powered lights, front/rear mudguards, side-mounted bike stand, chainguard.

Equipment

Reinforced side stand to keep the bike stable when parked with the pannier rack and front basket/rack fully loaded.

Stand

The certified pannier rack can hold 27 kg (60 lbs) and can fit a pannier-mounted child seat or any of our ELOPS bags.

The frame has been drilled so you can attach a bottle cage or folding lock to the seat tube. The back of the frame is drilled with mount holes for attaching a Ring Lock type bike lock (available as an accessory).
Compatible with a child bike tow (attached to the rear wheel axle).

Compatible accessories

Size XS is designed for riders 1.45 m (4'9") to 1.55 m (5'1") tall. Size S/M is designed for riders 1.55 m (5'1") to 1.75 m (5'9") tall. Size L/XL is designed for riders 1.75 m (5'9") to 1.95 m (6'5") tall. If you are between two sizes, choose the larger size for a more comfortable ride.

CHOOSING YOUR SHOE SIZE

Size XS= 17.6 kg (39 lbs)
Size SM = 19.1 kg (42 lbs)
Size L/XL = 19.45 kg (43 lbs)

Bike weight

This bike supports a maximum total weight of 100 kg [220 lbs] (bike + rider + load).

Maximum weight

To prevent punctures and to get the most out of your bike, check the tire pressure every fortnight when you're using the bike daily, or before each ride if you only use it occasionally. Degrease and lubricate the chain as soon as dirt begins to accumulate. Wash the frame with soapy water; do not use a high pressure water jet.

Care instructions

Store your bike in a dry, cool place.
If riding near the ocean, clean your bike regularly to prevent salt damage.
Transporting the step-through frame bike on a boot bike rack may require an adapter bar.

Storage/transport tips

Not suitable for off-road use. As this Dutch bike has very wide handlebars, take care when riding along narrow passages indoors or outdoors.

Use restrictions

Designed in Lille by a team of Engineers and Designers.
Assembled in the European Union.

Design

"Riding a bike around town is one of the best alternatives to using a car, and an efficient way to get from A to B.
To ensure your urban cycling remains a pleasure in all conditions and to be prepared for any eventuality, don't forget to equip yourself with the safety essentials: helmet, two bike locks, wet weather clothing and additional lighting accessories."
